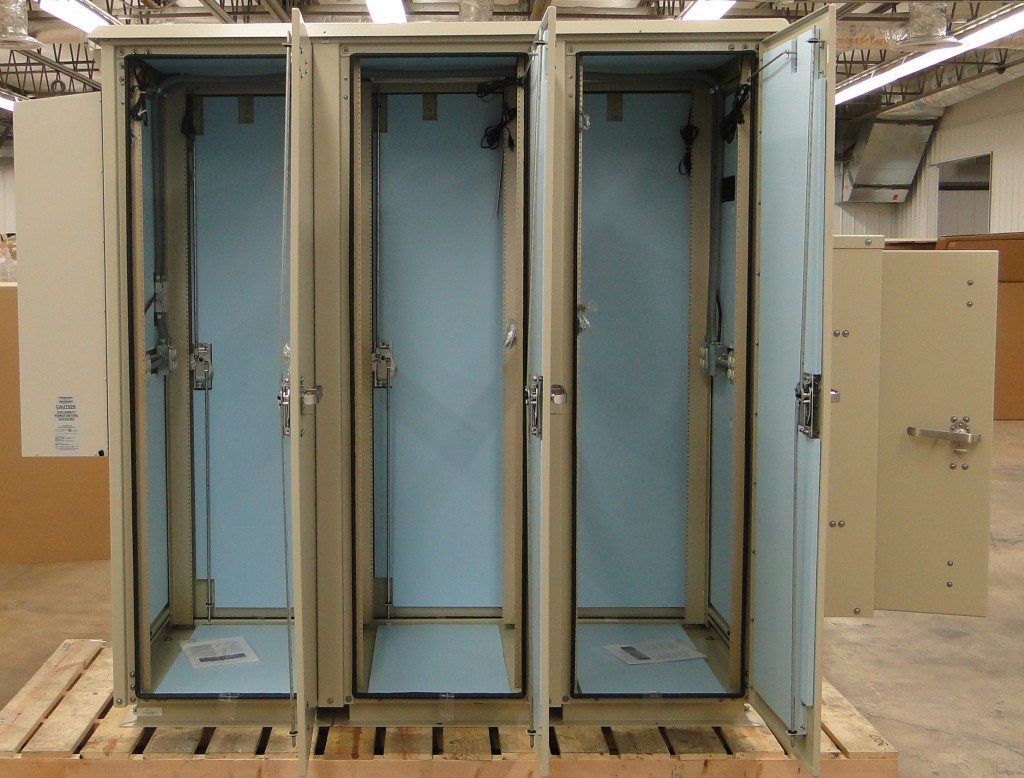

3OD-78DDC-POP3-2
- 78″H X 110″W X 34″D
- 252 Racking Units Total
- 6 sets of Adjustable 19″ or 23″ Racking Rails w/ RU Markings and Passthru Holes
- Powder Baked on Textured Cream Paint
- 3 Front and 3 Rear Doors
- 3 Point Padlocking Handles
- Heavy Duty Lifting Hooks
- Door Windlocks
- Spool Up Side Box
- 2 = (16k total) 8000 BTU Airconditioner w/800 Watts total Heat
This Triple Bay Design is 78″ High and 110″ Wide and 34″ Deep. It comes with Six Sets of Standard 19″ or 23″ 33RU (252 RU’s Total) Racking Rails w/ RU Markings. Standard Racking Hub that will allow you side by side Triple Bay Racking. Nema Outdoor Wireless LTE/4G/Wimax Triple Bay Racking Enclosure
Our Triple Bay Design is standardly from 16″H – 90″H and standardly from 25″D – 42″D. It’s the superior design in communication cabinets, being as rigid as steel and yet noticeably lighter than the old heavy steel constructed cabinets. This is made possible with our own aluminum recipe called Alumiflex®. It offers the protection needed for any severe outdoor environment. It’s constructed of .125″ Alumiflex® material and comes with an additional .125″ Alumishield® top cover, thereby fully protecting your equipment from falling ice and the sun’s heat penetration. Ultimate security is provided by a three point locking system, which utilizes NEMA stainless steel padlocking handles. It’s made of Alumiflex®, will operate without affecting, or being affected by, RF influences. Outdoor cabinets are becoming the alternative shelter solution for today’s complicated zoning requirements. So whether you’re installing a new shelter or adding room to your existing one, It’s the ultimate solution.
View Other Photos of Triple Door Enclosures CLICK HERE
Enclosure above is similar to the 3OD-62DDXC-POP3-4 except.
Bottom battery boxes and air conditioners as shown in the above picture, are available as an option.
(CLICK ON TABS BELOW FOR MORE INFO)
- Slide 1
-
Features
|
| Alumishield® |
Top cover, shades cabinet from the sun
|
| Handles |
Stainless steel – NEMA
|
| Rails |
Fully adjustable & Alodine coated
|
| Doors |
3 Front and 3 rear secured with three point locks and padlocking handles
|
| Vents |
Front & rear, top & bottom, filters supplied
|
| More Info |
Our Triple Bay Design is standardly from 16″H – 90″H and standardly from 25″D – 42″D. It’s the superior design in communication cabinets, being as rigid as steel and yet noticeably lighter than the old heavy steel constructed cabinets. This is made possible with our own aluminum recipe called Alumiflex®. It offers the protection needed for any severe outdoor environment. It’s constructed of .125″ Alumiflex® material and comes with an additional .125″ Alumishield® top cover, thereby fully protecting your equipment from falling ice and the sun’s heat penetration. Ultimate security is provided by a three point locking system, which utilizes NEMA stainless steel padlocking handles. It’s made of Alumiflex®, will operate without affecting, or being affected by, RF influences. Outdoor cabinets are becoming the alternative shelter solution for today’s complicated zoning requirements. So whether you’re installing a new shelter or adding room to your existing one, It’s the ultimate solution.
|
- Slide 2
-
Specifications – 3OD-78DDC – 78″H X 88.5″W X 34″D (252 RU) POP3-2
|
| Weight |
700 lbs. assembled
800 lbs. Shipping weight
|
| Doors |
Six – secured by three point locking system
Locks via customer supplied padlocks
Sealed with 13/16″ aluminum filled gaskets
|
| Material |
.125″ Alumiflex®
Finish: Flat aluminum
RF properties: Non-ferrous
|
| Vents |
Thirty bottom louvers per door
26 top louvers – In top cover-under Alumishield®
One removable filter panel per door
26 fixed filter pads in top cover
|
| Handles |
Stainless steel
|
| Lifting Hooks |
Six Standard
|
| Exterior Screws |
Stainless steel with NEMA washers & nylon locking nuts
|
| Kit Configuration |
- POP3-2
- 2 = 8000 BTU Air Conditioner, 220 Volts with 400 Watts Total Fan Heaters (16K Total BTU)
- Spool-Up Side Box 26″H X 22″W X 10″D
- LC-100 100 Amp Main Load Center w/ (4) 4-Square Outlets, (1) 220V Outlets
- 2 Fluorescent Lights
- Lifting Hooks
- Door Windlocks
- Door Alarms
|
Racking Specifications
|
| Rails |
Six sets standard (For additional rails see accessories)
Alodine coated
Holes tapped to 10 x 32 threads
Each rail supported by three R-STRUTS™
.125″ Alumiflex®
Rails will have the face utilizing 19″ racking and the mounting side to utilize 23″ racking. The left rail (19″ rack showing) will have two ground studs attached to the mounting face coming inward. There will be a hole at the top of each face of each rail for an optional ground strap. Rack units will be marked with etching depicting each RU and will have both a hole and etching separating each RU. The rails will be adjusted to fit inside an 3OD cabinet that has an extra 4″ width. The mounting holes will be adjusted to fit the new r-strut configuration. There will be 1.75″ passthrough holes between the RU-03 and the RU-04 marks on the face with the 23″ racking. Another 1.75″ passthrough will be on the face with the 19″ racking between the RU-04 and the RU-05 marks. Use Heyco 28882 snap bushing or equivalent in the 1.75″ cable passthrough holes. Hash Marks will seperate the RU’s.
|
| Spacing |
19″ EIA Standard
|
| Positioning |
All rails fully adjustable from front to rear
|
| Useable Height |
|
Useable Racking Height Has Been Revised to Only Fit in the Opening of the Door Jam. Which is Cabinet Height Minus 3.75″
| Total # of Rack Units: 252 |
42 RU’s per Rail Set |
|
|
| Useable Depth |
Maximum: 30.5 ” Minimum: 28 3/4″ Per Bay
|
Door Opening Clearance
|
| Height |
74″
|
| Width |
23.625″
|
Exterior Cabinet Dimensions
|
| Main Body |
Height: 78.25″
Width: 88″
Total Occupied w/Mounting Feet Width 94.0″
Depth: 34.25″
|
| Alumishield® |
Hang down height: 1.75″
Width 93 1/2″
Depth: 38.5″
|
| Handles |
Protrude 1 7/8″
|
| Total Space Occupied |
Height: 78.5″
Width: 105″ Cab + AC’s
Depth: 38″
|
Inside Clearance – Less Rails
|
| Height |
|
| Width |
26.6875″ Each Compartment
|
| Depth |
See racking specs – useable depth above
|
|
Ratings
|
| NEMA Class Types Available |
Class 250 // 3R (Vented) // 4 (closed loop-a/c) // 4X |
| Paint Tested |
1000 Hour salt spray
1000 Hour immersion
|
|
Warranty
|
| Period |
15 Years – Unconditional
|
- Slide 3
-
Accessory Options
|
| POP3-1 |
- 3 = 6000 BTU Air Conditioner 220 Volts
with 400 Watts Total Fan Heaters (18K Total BTU)
- Spool-Up Side Box 26″H X 22″W X 20″D
- LC-100 100 Amp Main Load Center
w/ (4) 4-Square Outlets, (1) 220V Outlets
- 2 Fluorescent Lights
- Lifting Hooks
- Door Windlocks
- Door Alarms
|
| POP3-2 |
- 2 = 8000 BTU Air Conditioner 220 Volts
with 800 Watts Total Fan Heaters (16K Total BTU)
- Spool-Up Side Box 26″H X 22″W X 20″D
- LC-100 100 Amp Main Load Center
w/ (4) 4-Square Outlets, (1) 220V Outlets
- 2 Fluorescent Lights
- Lifting Hooks
- Door Windlocks
- Door Alarms
|
| POP3-3 |
- 3 = 6000 BTU Air Conditioner, 220 Volts
with 400 Watts Total Fan Heaters (18K Total BTU)
- Spool-Up Side Box 26″H X 22″W X 20″D
- LC-100 100 Amp Main Load Center
w/ (4) 4-Square Outlets, (1) 220V Outlets
- 2 Fluorescent Lights
- Lifting Hooks
- Door Windlocks
- Door Alarms
- 3 Seperate Battery Compartment Tray’s for a 2OD
|
| POP3-4 |
- 2 = 8000 BTU Air Conditioner 220 Volts
with 800 Watts Total Fan Heaters (16K Total BTU)
- Spool-Up Side Box 26″H X 22″W X 20″D
- LC-100 100 Amp Main Load Center
w/ (4) 4-Square Outlets, (1) 220V Outlets
- 2 Fluorescent Lights
- Lifting Hooks
- Door Windlocks
- Door Alarms
- Battery Box
- 3 Seperate Battery Compartment Tray’s for a 2OD
|
- Slide 4
-
Climate Control Options
|
| Air Conditioners |
|
| Heater Options |
|
| AC & DC Fan Kits |
|
- Slide 5
-
Shipping Info
|
| Standard |
The 3OD-78DDC-POP3 is shipped fully assembled. |
