62”H x 110”W x 42”D (198 RU) Outdoor Enclosure POP3-4

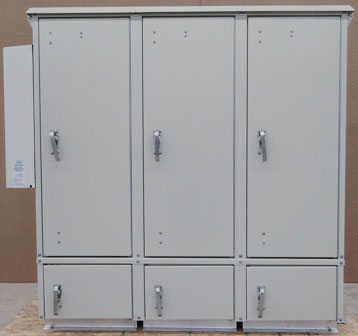

This Triple Bay Design is 62″ High and 110″ Wide and 42″ Deep. It comes with Six Sets of Standard 19″ or 23″ 33RU (198 RU’s Total) Racking Rails w/ RU Markings. Standard Racking Hub that will allow you side by side, Triple Racking Bays. Nema Outdoor Wireless LTE/4G/Wimax Triple Bay Racking Enclosure View Other Photos of Triple Door Enclosures

View Other Photos of Triple Door Enclosures CLICK HERE

3OD-62DDXC-POP3-4

78″H X 88.5″W X 42″D Total Dims.
62″H X 88.5″W X 42″D Racking Enclosure
16″H X 88.5″W X 42″D Battery Enclosure
3 Front and 3 Rear Doors
3 Point Padlocking Handles
6 Sets of Adjustable 19″ or 23″ Racking Rails
Alumishield® Design
(C) Painted Cream
LC-100 100 Amp Main Load Centerw/ (6) 4-Square Outlets, (2) 220V Outlets
3 Fluorescent Lights
Lifting Hooks
Door Windlocks
Door Alarms
4″ C-Channel Feet for Mounting
3 Battery Compartments/each 16″ High x 25″ Wide x 42″Deep (Mounting Tray 2″ H X 18.75″W X 37″D)
2 = 8000 BTU Air Conditioner 220 Volts with 800 Watts Total Fan Heaters (16K Total BTU)

3OD-62DDXC-POP3-4 Specs Sheet (PDF)

3OD Drawing Spec Sheet (PDF)

Wind Load Study (PDF)

DDB Fan Kit Installation Instructions (PDF)

(CLICK ON TABS BELOW FOR MORE INFO)

Specifications – 3OD-62DDXC-POP3-4 – 62”H x 88.5”W x 42”D (198 RU) Outdoor Enclosure

Weight

620 lbs. assembled 780 lbs. Shipping weight

Doors

Six – secured by three point locking system Locks via customer supplied padlocks Sealed with 13/16″ aluminum filled gaskets

Material

.125″ Alumiflex® Finish: Flat aluminum RF properties: Non-ferrous

Vents

Thirty bottom louvers per door 26 top louvers – In top cover-under Alumishield® One removable filter panel per door 26 fixed filter pads in top cover

Handles

Stainless steel

Lifting Hooks

Eight Standard

Exterior Screws

Stainless steel with NEMA washers & nylon locking nuts

Kit Configuration

POP3-4
3 Seperate Bottom Battery Compartment Tray’s for a 3OD
2 = 8000 BTU Air Conditioner, 220 Volts with 400 Watts Total Fan Heaters (16K Total BTU)
Spool-Up Side Box 26″H X 22″W X 10″D
LC-100 100 Amp Main Load Center w/ (4) 4-Square Outlets, (1) 220V Outlets
2 Fluorescent Lights
Lifting Hooks
Door Windlocks
Door Alarms

Racking Specifications

Rails

Six sets standard (For additional rails see accessories) Alodine coated Holes tapped to 10 x 32 threads Each rail supported by three R-STRUTS™ .125″ Alumiflex®

Rails will have the face utilizing 19″ racking and the mounting side to utilize 23″ racking. The left rail (19″ rack showing) will have two ground studs attached to the mounting face coming inward. There will be a hole at the top of each face of each rail for an optional ground strap. Rack units will be marked with etching depicting each RU and will have both a hole and etching separating each RU. The rails will be adjusted to fit inside an 3OD cabinet that has an extra 4″ width. The mounting holes will be adjusted to fit the new r-strut configuration. There will be 1.75″ passthrough holes between the RU-03 and the RU-04 marks on the face with the 23″ racking. Another 1.75″ passthrough will be on the face with the 19″ racking between the RU-04 and the RU-05 marks. Use Heyco 28882 snap bushing or equivalent in the 1.75″ cable passthrough holes. Hash Marks will seperate the RU’s.

Spacing

19″ EIA Standard

Positioning

All rails fully adjustable from front to rear

Useable Height

Useable Racking Height Has Been Revised to Only Fit in the Opening of the Door Jam. Which is Cabinet Height Minus 3.75″

Maximum: 57.75″

Total # of Rack Units: 198

33 RU’s per Rail Set

Useable Depth

Maximum: 38 1/2 ” Minimum: 36 3/4″

Door Opening Clearance

Height

58.25″

Width

23.625″

Exterior Cabinet Dimensions

Main Body

Height: 62.48″ Width: 88″ Depth: 42.25″

Alumishield®

Hang down height: 1.75″ Width 93 1/2″ Depth: 44.5″

Handles

Protrude 1 7/8″

Total Space Occupied

Height: 63.105″ Width: 88″ Depth: 46″

Inside Clearance – Less Rails

Height

62″

Width

26.6875″ Each Compartment

Depth

See racking specs – useable depth above

Ratings

NEMA Class Types Available

Class 250 // 3R (Vented) // 4 (closed loop-a/c) // 4X

Paint Tested

1000 Hour salt spray 1000 Hour immersion

Warranty

Period

15 Years – Unconditional

Features
Alumishield®	Top cover, shades cabinet from the sun
Handles	Stainless steel – NEMA
Rails	Fully adjustable & Alodine coated
Doors	3 Front and 3 rear secured with three point locks and padlocking handles
Vents	Front & rear, top & bottom, filters supplied
More Info	Our Triple Bay Design is standardly from 16″H – 90″H and standardly from 25″D – 42″D. It’s the superior design in communication cabinets, being as rigid as steel and yet noticeably lighter than the old heavy steel constructed cabinets. This is made possible with our own aluminum recipe called Alumiflex®. It offers the protection needed for any severe outdoor environment. It’s constructed of .125″ Alumiflex® material and comes with an additional .125″ Alumishield® top cover, thereby fully protecting your equipment from falling ice and the sun’s heat penetration. Ultimate security is provided by a three point locking system, which utilizes NEMA stainless steel padlocking handles. It’s made of Alumiflex®, will operate without affecting, or being affected by, RF influences. Outdoor cabinets are becoming the alternative shelter solution for today’s complicated zoning requirements. So whether you’re installing a new shelter or adding room to your existing one, It’s the ultimate solution.

Accessory Options
POP3-2	2 = 8000 BTU Air Conditioner 220 Voltswith 800 Watts Total Fan Heaters (16K Total BTU) Spool-Up Side Box 26″H X 22″W X 20″D LC-100 100 Amp Main Load Centerw/ (4) 4-Square Outlets, (1) 220V Outlets 2 Fluorescent Lights Lifting Hooks Door Windlocks Door Alarms
POP3-3	3 = 6000 BTU Air Conditioner, 220 Voltswith 400 Watts Total Fan Heaters (18K Total BTU) Spool-Up Side Box 26″H X 22″W X 20″D LC-100 100 Amp Main Load Centerw/ (4) 4-Square Outlets, (1) 220V Outlets 2 Fluorescent Lights Lifting Hooks Door Windlocks Door Alarms 3 Seperate Battery Compartment Tray’s for a 2OD
POP3-4	2 = 8000 BTU Air Conditioner 220 Voltswith 800 Watts Total Fan Heaters (16K Total BTU) Spool-Up Side Box 26″H X 22″W X 20″D LC-100 100 Amp Main Load Centerw/ (4) 4-Square Outlets, (1) 220V Outlets 2 Fluorescent Lights Lifting Hooks Door Windlocks Door Alarms Battery Box 3 Seperate Battery Compartment Tray’s for a 2OD

Climate Control Options
Air Conditioners	view all options
Heater Options	view all options
AC & DC Fan Kits	view all options

Shipping Info
Standard	The 3OD-62DDXC-POP3-4 is shipped fully assembled.
