PMS-3030

• for OD, ST, or SOD Series Enclosures
• This shelf can be used in most Indoor or Outdoor Applications
• 14″H X 30″W X 30″D
• Max Weight = 1750 lbs

Inside Mounting Trays

---

BT-2117 – Center Rack Battery Tray

Supported with Single Set Support Rails

• 21″D x 17″W Inner
• 19″ Center Mount Racks
• 12 Gauge Steel
• 3 Racks Units High (6 5/8″H)
• Weight: 12 LBS

Telecom Batteries

MARATHON
VBB-M12V90FT **NEW***	12 VDC = 90 AH 10.63″H X 4.13″W X 15.55″D / 70 Lbs.
VBB-M12V105FT **NEW STOCKING*	12 VDC = 105 AH 9.38″H X 4.33″W X 20.12″D / 79 Lbs.
VBB-M12V125FT **NEW***	12 VDC = 125 AH 11.15″H X 4.90″W X 22″D / 105 Lbs.
VBB-M12V155FT *NEW STOCKING*	12 VDC = 155 AH 11.15″H X 4.90″W X 22″D / 119 Lbs.
VBB-M12V180FT **NEW***	12 VDC = 180 AH 12.50” H X 4.90”W X 22″D / 133 Lbs.

BATTERY CORP
VBB-BC-12V75FT	12 VDC = 75AH = 8.94″H x 4.14″W x 21.95″D = 63lb
VBB-BC-12V100FT	12 VDC = 100AH = 11.30″H x 4.13″W x 15.35″D = 76lb
VBB-BC-12V155FT	12 VDC = 155AH = 11.14″H x 4.92″W x 21.95″D = 119lb
VBB-BC-12V170FT	12 VDC = 155AH = 12.20″H x 4.92″W x 21.97″D = 1lb

Model #	Description
VBB-TEL-12-70	70AH = 8.01″H x 10.17W x 6.65″D =56lb

BT-2117 – **New** – 17″W X 21″D – SINGLE RACK BATTERY TRAY

Racking Spec Layout

STANDARD EIA 19″ Racking

EIA-310 is a specification for what is often called the “standard rack”. This specification standardizes several important features of 19″ racks, such as the Rack Unit (RU or U), vertical hole spacing, horizontal hole spacing, rack opening, and front panel width. The specification also set tolerances on each of these dimensions.
The EIA-310 specification has been the 19″ racks standard for equipment for 50 years. The items that the specification does not cover are the real reason for the industry wide incompatibility we now face. Rack features such as hole type, rack mounting depth, front and rear space, and obstructions between front and rear rails are the cause of real rack headaches.
Vertical Hole Spacing
Vertical hole spacing is defined as a repeating pattern of holes within one Rack Unit of 1.75″. The hole spacing alternated at: 1/2″ – 5/8″ – 5/8″ and repeats. The start and stop of the “U” space is in the middle of the 1/2″ spaced holes. See the diagram below.

Horizontal Spacing
The horizontal spacing of the vertical rows of holes is specified by EIA-310 at 18 5/16″ (18.312)(465.1 mm). This dimension is not well maintained on some racks, causing problems with equipment installation. Many manufacturers use equipment mounting slots instead of holes to allow for variations in this dimension.

Rack Opening
The opening in the rack is specified as a minimum of 17.72″ (450mm). 2Post or relay racks tend to have a larger than normal opening, as do many other racks with threaded holes. Square hole racks tend to be very close to the minimum opening.

More Options

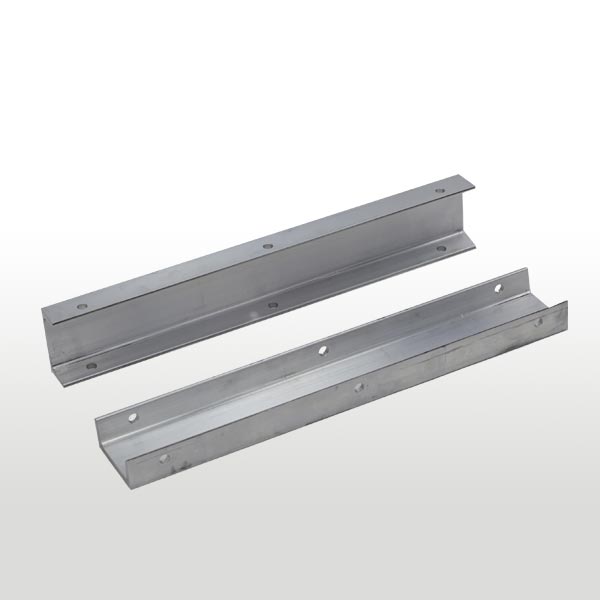

CF-4	Two 4″ C-Chan. Feet 25″ Long

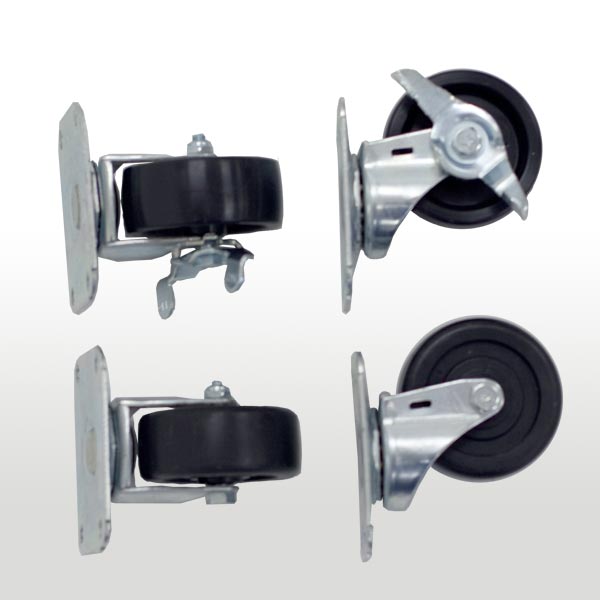

CA-4	Set of Heavy Duty Caster Kit (4) 2 Locking and 2 Standard
DIM PAD	EDM (Enclosure Vibration Dampening Pad Mount) Distributed Isolation Material (DIM) pads Quantity 4 To A Set

Lifting Hooks, Feet, Casters, Etc. – In Stock

Part #	Description

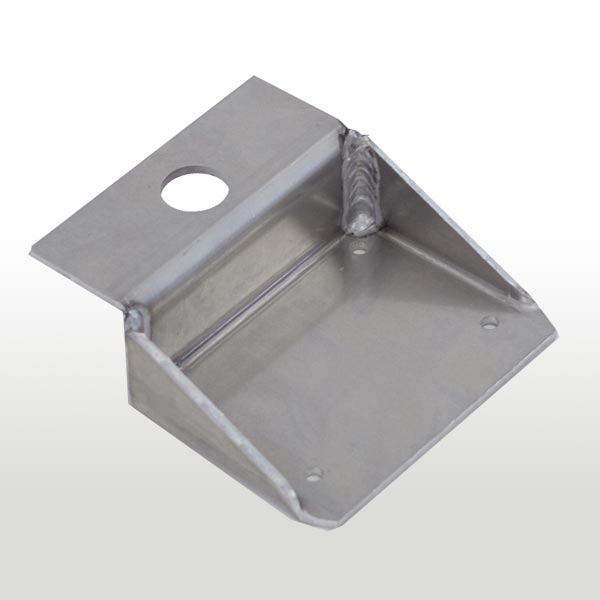

I Hooks	Lifting Eye-Hooks Kit Qty-4
VIB-25	Shock Mounted Vibra-Bobbins for 19″ or 23″ Racking Rails
GRDBR-10
COL-4	4″ COLLAR TO JOIN 2 ENCLOSURES TOGETHER FOR CABLE PASS THRU
.5 MICRONS	Two 5 Micron Nylon Replacement Filters 7 1/4″W X 10″H
