78″H X 59″W X 34″D (168 RU) Outdoor Enclosure

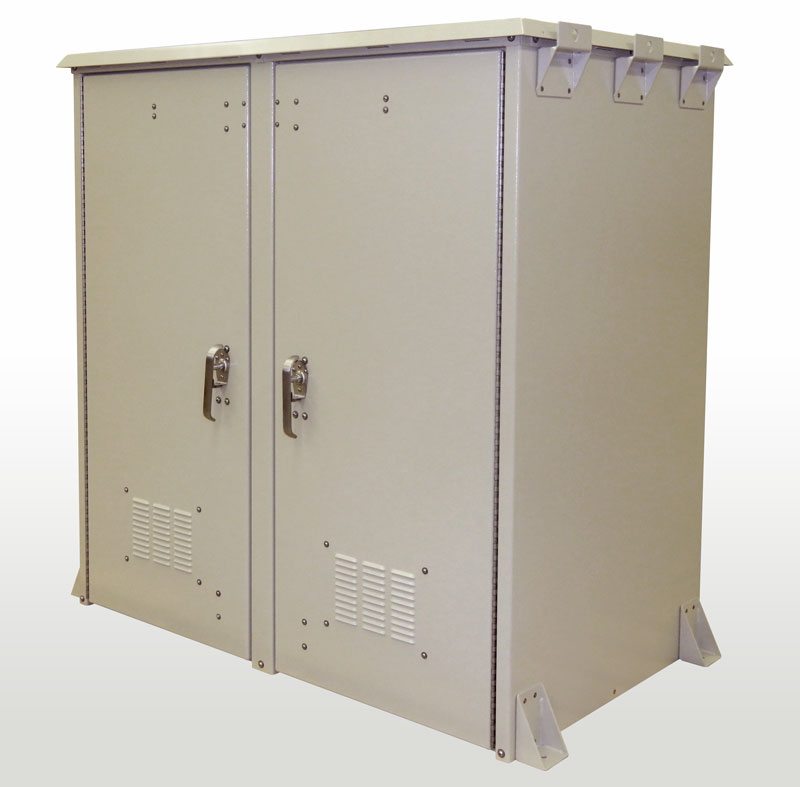

This Double Bay Design is 78″ High and 59″ Wide and 34″ Deep. It comes with Four Sets of Standard 19″ or 23″ 42RU (168 RU’s Total) Racking Rails w/ RU Markings. Cabinet Racking Hubs that will allow you side by side, double racking bays. Nema Outdoor Wireless LTE/4G/Wimax Double Bay Racking Enclosure

View Other Photos of Double Door Enclosures CLICK HERE

2OD-78DDC

168 Racking Units Total
4 sets of Adjustable 19″ or 23″ Racking Rails
w/ RU Markings and Passthru Holes
Powder Baked on Textured Cream Paint

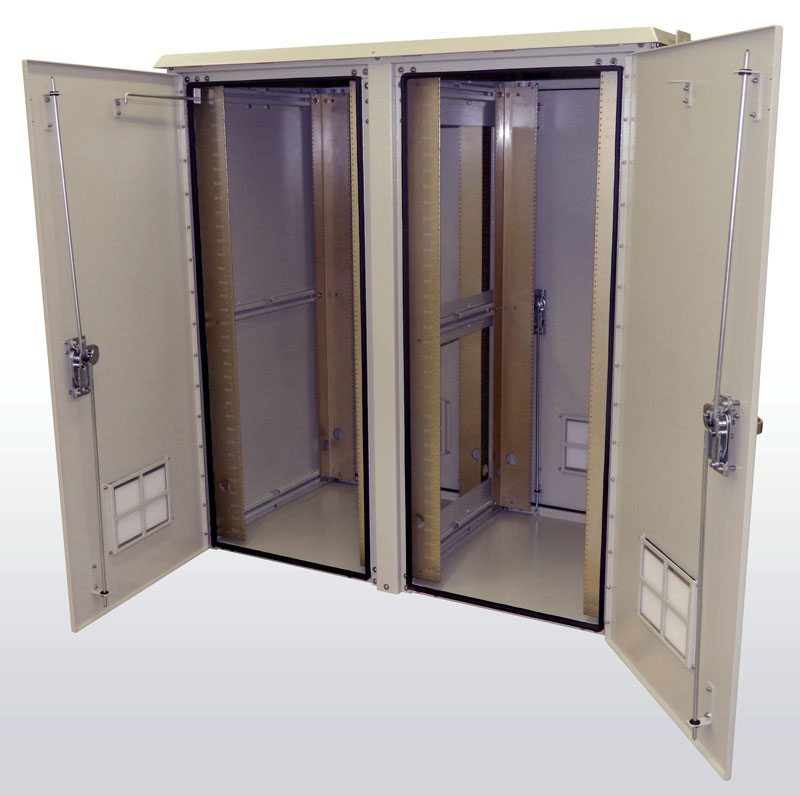

2 Front and 2 Rear Doors
3 Point Padlocking Handles
Heavy Duty Lifting Hooks
Door Windlocks

2OD-78DDC Specs Sheet (PDF)

Newly Modified Enclosure Spec Sheet (PDF)

Wind Load Study (PDF)

DDB Fan Kit Installation Instructions (PDF)

(CLICK ON TABS BELOW FOR MORE INFO)

[

Specifications – 2OD-78DDC– 78″H X 59″W X 34″D (168 RU) Outdoor Enclosure

Weight

380 lbs. Assembled

405 lbs. Shipping weight

Doors

Four – secured by three point locking system Locks via customer supplied padlocks Sealed with 13/16″ aluminum filled gaskets

Material

.125″ Alumiflex® Finish: Flat aluminum RF properties: Non-ferrous

Vents

Thirty bottom louvers per door 20 top louvers – In top cover-under Alumishield® One removable filter panel per door 20 fixed filter pads in top cover

Handles

Stainless steel

Lifting Hooks

Four Standard

Exterior Screws

Stainless steel with NEMA washers & nylon locking nuts

Racking Specifications

Rails

Four sets standard (For additional rails see accessories) Alodine coated Holes tapped to 10 x 32 threads Each rail supported by three R-STRUTS™ .125″ Alumiflex®

Rails will have the face utilizing 19” racking and the mounting side to utilize 23” racking. The left rail (19” rack showing) will have two ground studs attached to the mounting face coming inward. There will be a hole at the top of each face of each rail for an optional ground strap. Rack units will be marked with etching depicting each RU and will have both a hole and etching separating each RU. The rails will be adjusted to fit inside an 2OD cabinet that has an extra 4” width. The mounting holes will be adjusted to fit the new r-strut configuration. There will be 1.75″ passthrough holes between the RU-03 and the RU-04 marks on the face with the 23″ racking. Another 1.75″ passthrough will be on the face with the 19″ racking between the RU-04 and the RU-05 marks. Use Heyco 28882 snap bushing or equivalent in the 1.75″ cable passthrough holes. Hash Marks will seperate the RU’s.

Spacing

19″ EIA Standard

Positioning

All rails fully adjustable from front to rear

Useable Height

Useable Racking Height Has Been Revised to Only Fit in the Opening of the Door Jam. Which is Cabinet Height Minus 3.75”

Maximum: 73.50″

Total # of Rack Units: 168

42 RU’s per Rail Set

Useable Depth

Maximum: 30.50” Minimum: 28.75″

Door Opening Clearance

Height

74″

Width

23.625″

Exterior Cabinet Dimensions

Main Body

Height: 78.25″ Width: 59″

Total Occupied w/Mounting Feet Width 65.0”

Depth: 34″

Alumishield®

Hang down height: 1.75″ Width 62.875″ Depth: 36.50″

Handles

Protrude 1 7/8″

Total Space Occupied

Height: 78.855″

Width: 65″ Depth: 37.75″

Inside Clearance – Less Rails

Height

78″

Width

26.6875″ Each Compartment

Depth

See racking specs – useable depth above

Ratings

NEMA Class Types Available

Class 250 // 3R (Vented) // 4 (closed loop-a/c) // 4X

Paint Tested

1000 Hour salt spray

1000 Hour immersion

Warranty

Period

15 Years – Unconditional

Features
Alumishield®	Top cover, shades cabinet from the sun
Handles	Stainless steel – NEMA
Rails	Fully adjustable & Alodine coated
Doors	2 Front and 2 rear secured with three point locks and padlocking handles
Vents	Front & rear, top & bottom, filters supplied

Accessory Options
(C)	Powder baked on textured paint
R-2-78:	Two extra 78″ rails and mounting hardware
Load Centers	60 – 100 Amp Mains w/ 2 Populated 4 Square Outlets
Padlocks	Short/Long Shanks Comb Locks
MTDD:	Mounting tray
CF-4:	Two 4″ C-Chan. Feet 25″ Long
SMT-17FT9:	990 CFM 110v Dual Rail Fan Mounting Tray
Doors Alarms:	NO/NC Door Contacts
POP2 Options
POP2-1	2 = 8000 BTU Air Conditioner, 220 Volts with 400 Watts Total Fan Heaters (12K Total BTU) Spool-Up Side Box 26″H X 22″W X 10″D LC-100 100 Amp Main Load Center w/ (4) 4-Square Outlets, (1) 220V Outlets 2 Fluorescent Lights Lifting Hooks Door Windlocks Door Alarms
POP2-2	2 = 8000 BTU Air Conditioner 220 Volts with 800 Watts Total Fan Heaters (16K Total BTU) Spool-Up Side Box 26″H X 22″W X 20″D LC-100 100 Amp Main Load Center w/ (4) 4-Square Outlets, (1) 220V Outlets 2 Fluorescent Lights Lifting Hooks Door Windlocks Door Alarms
POP2-3	2 = 6000 BTU Air Conditioner, 220 Volts with 400 Watts Total Fan Heaters (12K Total BTU) Spool-Up Side Box 26″H X 22″W X 20″D LC-100 100 Amp Main Load Center w/ (4) 4-Square Outlets, (1) 220V Outlets 2 Fluorescent Lights Lifting Hooks Door Windlocks Door Alarms 2 Seperate Battery Compartment Tray’s for a 2OD
POP2-4	2 = 8000 BTU Air Conditioner 220 Volts with 800 Watts Total Fan Heaters (16K Total BTU) Spool-Up Side Box 26″H X 22″W X 20″D LC-100 100 Amp Main Load Center w/ (4) 4-Square Outlets, (1) 220V Outlets 2 Fluorescent Lights Lifting Hooks Door Windlocks Door Alarms Battery Box 2 Seperate Battery Compartment Tray’s for a 2OD

Climate Control Options
Air Conditioners	view all options
Heater Options	view all options
AC & DC Fan Kits	view all options

Shipping Info
Standard	The 2OD-78DDC is shipped fully assembled.

800-753-8459
