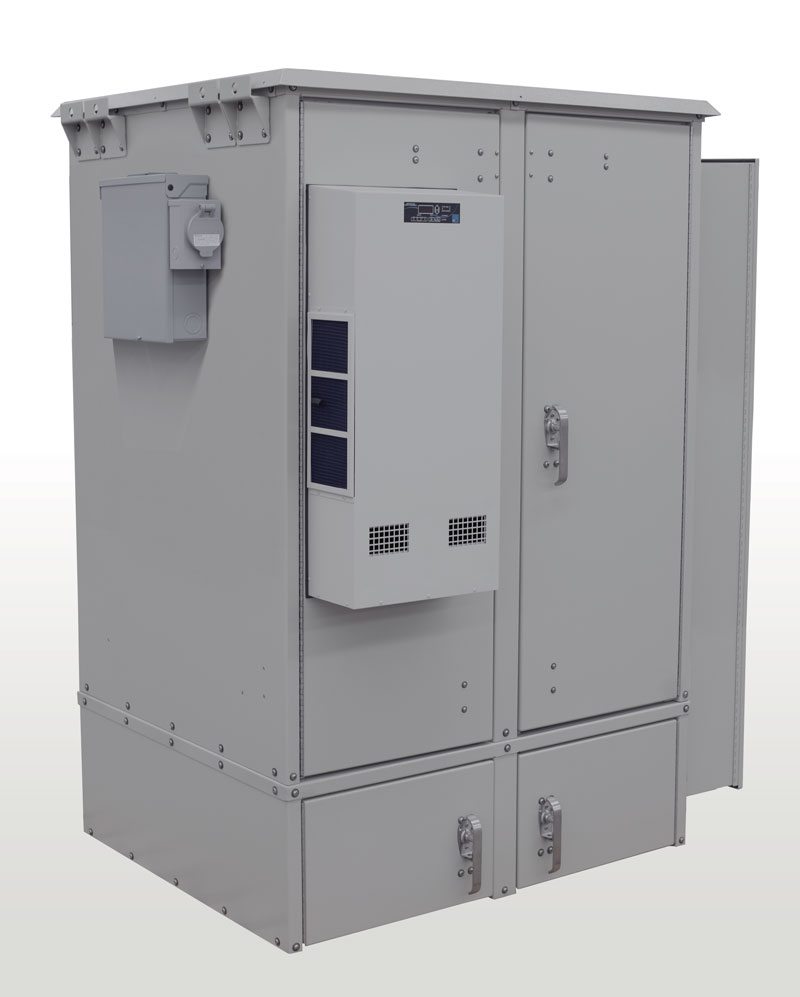

2OD-62DDXC-A1 62″H X 59″W X 42″D (132 RU) Outdoor Enclosure

2OD-62DDXC

  • Dual Bay Enclosure
  • Powder Baked-On Textured Cream Paint
  • Standard (2 Sets ) – 19″ Racking Rails Per Bay
  • 132 Racking Units  (4 Sets Total)
  • (23″ Racking = Optional)
  • 2 Front and 2 Rear Doors
  • 3 Point Padlocking
  • Heavy Duty Lifting Hooks
  • Heavy Duty Windlocks
  • 4 L-Brackets for Pad Mounting
  • 2 Battery Compartments (Each Tray 18 3/4″W X 37″D)
  • Side Fiber or Cable Spool-Up Box (72″H X 16″W X 12″D)
  • 2 MT-DDX Shelves
  • All to Have Countersunk Side Screws in Side Panels, (Even the Eye Hook Screws)
  • All to Have Extra Center Divider Brackets
  • All Doors to be Made of .160” with 3/16” Stainless Steel Hinges
  • All R-Nuts to be Threaded for 3/8” Bolt
  • All Door Screws to be 10/32” Minimum
**Assembly Notes**
  • 100 Amp Load Center w/4 Populated 4 Square Outlets Installed
  • 2 – 6000 Air Conditioners 220v
  • 2 – F-25-115T Fan Kit for Air Circulation in Battery Box
  • 2 – Fluorescent Lights
  • Door Alarm Switches

View Other Photos of Double Door Enclosures CLICK HERE

spacer
Our Double Bay Design is standard from 16″H – 90″H and standard from 25″D – 42″D. It’s the superior design in communication cabinets, being as rigid as steel and yet noticeably lighter than the old heavy steel constructed cabinets. This is made possible with our own aluminum recipe called Alumiflex™. It offers the protection needed for any severe outdoor environment. It’s constructed of .125″ Alumiflex™ material and comes with an additional .125” Alumishield™ top cover, thereby fully protecting your equipment from falling ice and the sun’s heat penetration. Ultimate security is provided by a three point locking system, which utilizes NEMA stainless steel padlocking handles. It’s made of Alumiflex™, will operate without affecting, or being affected by, RF influences. Outdoor cabinets are becoming the alternative shelter solution for today’s complicated zoning requirements. So whether you’re installing a new shelter or adding room to your existing one, It’s the ultimate solution.
(CLICK ON TABS BELOW FOR MORE INFO)
Slide 1

Features

Alumishield™
Top cover, shades cabinet from the sun
Handles
Stainless steel – NEMA
Rails
4 Sets of Fully adjustable & Alodine coated
Doors
Front and rear secured with three point locks and padlocking handles
Slide 2

Specifications – 2OD-62DDXC-A1 – 62″H X 59″W X 42″D (132 RU) Outdoor Enclosure

Weight
440 lbs. assembled
500 lbs. Shipping weight
Doors
Four – secured by three point locking system
Locks via customer supplied padlocks
Sealed with 13/16″ aluminum filled gaskets
Material
.125″ Alumiflex™
Finish: Flat aluminum
RF properties: Non-ferrous
Vents
None
Handles
Stainless steel
Exterior Screws
Stainless with NEMA washers & nylon locking nuts

Racking Specifications

Rails
Four sets standard (For additional rails see accessories)
Alodine coated
Holes tapped to 10 x 32 threads
Each rail supported by three R-STRUTS™
.125″ Alumiflex™
Rails will have the face utilizing 19” racking and the mounting side to utilize 23” racking. The left rail (19” rack showing) will have two ground studs attached to the mounting face coming inward. There will be a hole at the top of each face of each rail for an optional ground strap. Rack units will be marked with etching depicting each RU and will have both a hole and etching separating each RU. The rails will be adjusted to fit inside an 2OD cabinet that has an extra 4” width. The mounting holes will be adjusted to fit the new r-strut configuration. There will be 1.75″ passthrough holes between the RU-03 and the RU-04 marks on the face with the 23″ racking. Another 1.75″ passthrough will be on the face with the 19″ racking between the RU-04 and the RU-05 marks. Use Heyco 28882 snap bushing or equivalent in the 1.75″ cable passthrough holes. Hash Marks will seperate the RU’s.
Spacing
19″ EIA Standard
Positioning
All rails fully adjustable from front to rear
Useable Height
Useable Racking Height Has Been Revised to Only Fit in the Opening of the Door Jam. Which is Cabinet Height Minus 3.75”
Maximum: 57.75″
Total # of  Rack Units:  132 33 RU’s per Rail Set
Useable Depth
Maximum: 38.50″ Minimum 36.75″

Door Opening Clearance

Height
58.25″
Width
23.625″

Exterior Cabinet Dimensions

Total Body
Height: 78.25″
Width: 59″
Depth: 42.25″
Top Main Body
Height: 62.25″ (Top)
Width: 59″
Total Occupied w/Mounting Feet Width 65.0”

Depth: 42.25″

Bottom Battery Body
16″ High
25″ Wide (Bottom)
(Mounting Tray 2″ H X 37″D X 18.75″W)
42″ Deep
Alumishield™
Hang down height: 1.75″
Width 62.875″
Depth: 44 11/16″
Handles
Protrude 1 7/8″
Total Space Occupied
Height: 62.50″
Width: 63.105″
Depth: 46″

Inside Clearance – Less Rails

Height
62″
Width
26.6875″ Each Compartment
Depth
See racking specs – useable depth above

Ratings

NEMA Class Types Available
Class 250 Type 4
Paint Tested
1000 Hour salt spray
1000 Hour immersion

Warranty

Period
15 Years – Unconditional
Slide 3

Accessory Options

R-2-62:
Two extra 62 ” rails and mounting hardware
MTDDX:
Mounting tray
CA-4:
Caster kit (4) & mounting hardware
SCR-432:
Rail Screws (4) 10×32

POP2 Options

POP2-1
  • 2 = 8000 BTU Air Conditioner, 220 Volts with 400 Watts Total Fan Heaters (12K Total BTU)
  • Spool-Up Side Box 26″H X 22″W X 10″D
  • LC-100 100 Amp Main Load Center w/ (4) 4-Square Outlets, (1) 220V Outlets
  • 2 Fluorescent Lights
  • Lifting Hooks
  • Door Windlocks
  • Door Alarms
POP2-2
  • 2 = 8000 BTU Air Conditioner 220 Volts
    with 800 Watts Total Fan Heaters (16K Total BTU)
  • Spool-Up Side Box 26″H X 22″W X 20″D
  • LC-100 100 Amp Main Load Center
    w/ (4) 4-Square Outlets, (1) 220V Outlets
  • 2 Fluorescent Lights
  • Lifting Hooks
  • Door Windlocks
  • Door Alarms
POP2-3
  • 2 = 6000 BTU Air Conditioner, 220 Volts
    with 400 Watts Total Fan Heaters (12K Total BTU)
  • Spool-Up Side Box 26″H X 22″W X 20″D
  • LC-100 100 Amp Main Load Center
    w/ (4) 4-Square Outlets, (1) 220V Outlets
  • 2 Fluorescent Lights
  • Lifting Hooks
  • Door Windlocks
  • Door Alarms
  • 2 Seperate Battery Compartment Tray’s for a 2OD
POP2-4
  • 2 = 8000 BTU Air Conditioner 220 Volts
    with 800 Watts Total Fan Heaters (16K Total BTU)
  • Spool-Up Side Box 26″H X 22″W X 20″D
  • LC-100 100 Amp Main Load Center
    w/ (4) 4-Square Outlets, (1) 220V Outlets
  • 2 Fluorescent Lights
  • Lifting Hooks
  • Door Windlocks
  • Door Alarms
  • Battery Box
  • 2 Seperate Battery Compartment Tray’s for a 2OD
Slide 4

Climate Control Options

Air Conditioners
Heater Options
AC & DC Fan Kits
Slide 5

Shipping Info

Standard The 2OD-62DDX-A1 is shipped fully assembled, but can easily be knocked down and re-assembled at your site, if desired.
