LTE
LTEE-D (Direct Air Cooled)
LTEE-D
- 80”H x 25”W x 34”D
- 2 Sets of 27 Racking Units in Top Compartment
- Separate Battery Compartments
- UL – CSA Certified
- MERV 16, GR-487 Salt Fog Filter
- Alumishield® Roof

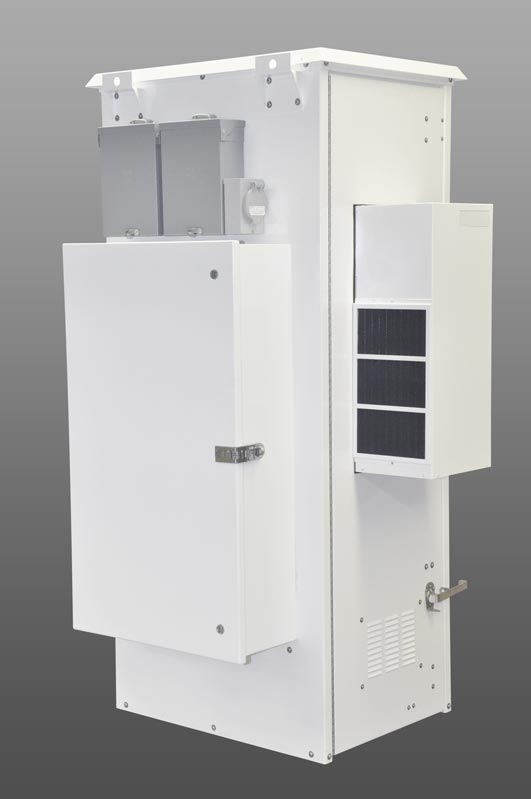

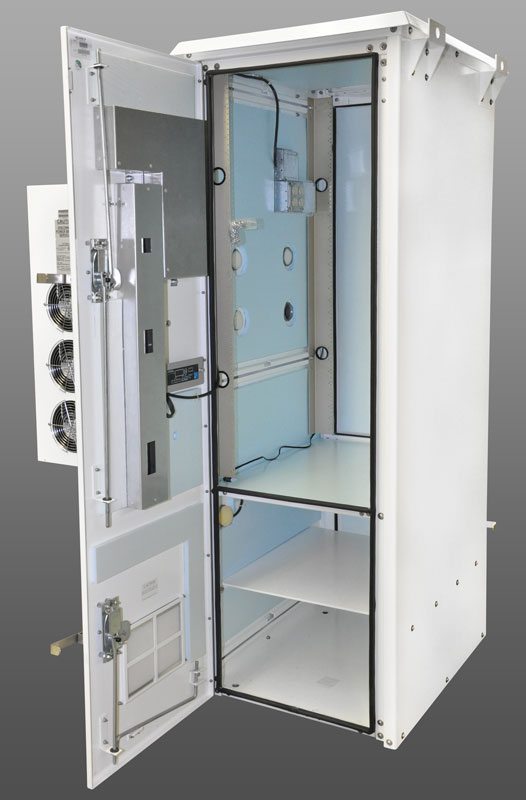

LTEE-A (HVAC – Closed Loop)
LTEE-A
- 80”H x 25”W x 34”D
- 2 Sets of 27 Racking Units in Top Compartment
- Separate Battery Compartments
- UL – CSA Certified
- 220v 6000 BTU Programmable Air Conditioner with 400 Watts of Heat
- Alumishield® Roof

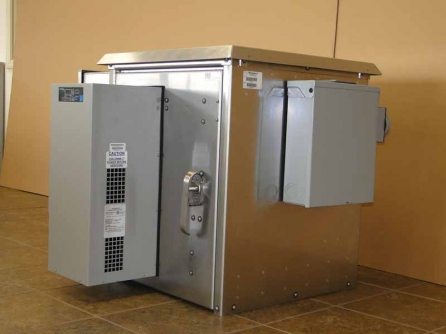

R7-30DXCW (Single Compartment / HVAC Cooled)
R7-30DXCW
- 30”H x 25”W x 25”D
- 2400 BTU Air conditioner 110 Volts (External Heat option)
- w/ R3.3 Insulation
- Spool Up Side Box w/ Ground Bar
- Load Center w/ Manual Transfer
- Battery Box Enclosure w/Slide-Out Battery Tray

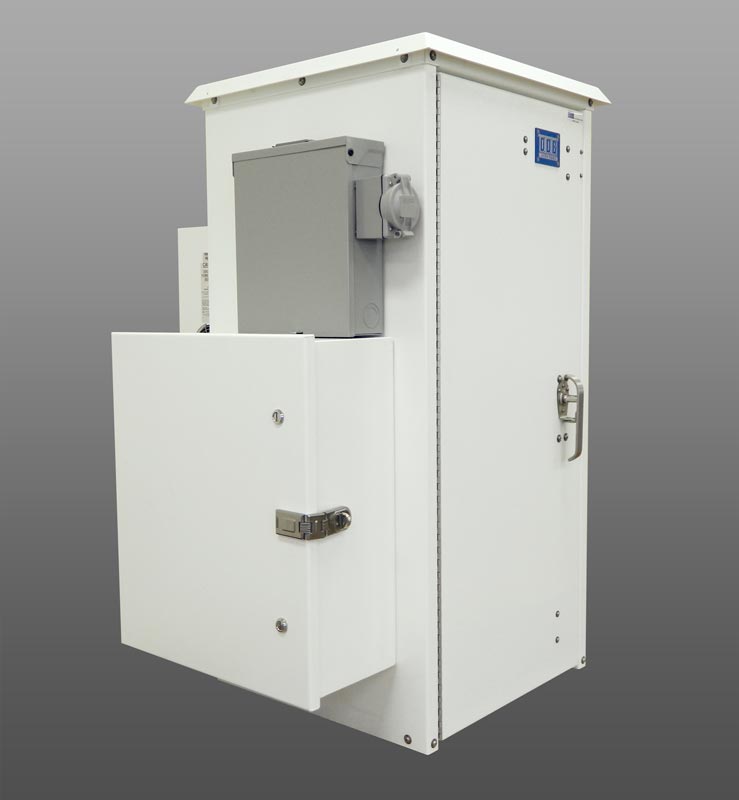

R7-54DXW-ACD Painted White (S Compartment w/ HVAC)
R7-54DXW-ACD (230V)
- UL & CSA certified
- 54″H X 37″W X 36″D
- Standard EIA 19″ Racking
- 29 Racking Units (RU)
- 5500 BTU 230Volt with 400 Watts of Heat
- Ext. Generator Plug
- Door Alarm Switches
- Fluorescent Light
- Spool-Up Side Box
- Ground Bar
- R3.3 Insulation
- R7-54DXW-ACD-120V = 120 Volt version
- Powder Baked on Textured White Paint
R7-54DXCW-ACD (Single Compartment / HVAC Cooled)
R7-54DXCW-ACD (230V)
- UL & CSA certified
- 54″H X 37″W X 36″D
- Standard EIA 19″ Racking
- 5500 BTU 230Volt with 400 Watts of Heat
- Ext. Generator Plug
- Door Alarm Switches
- Fluorescent Light
- Spool-Up Side Box
- Ground Bar
- R3.3 Insulation
- R7-54DXCW-ACD(120V) = 120 Volt version
R7-54DXCW-41 (Single Compartment/HVAC 110v Cooled)
R7-54DXCW-41
- 54″H X 25″W X 25″D
- Standard EIA 19″ Racking
- 4000 BTU 110 Volts (-41=110 Volts) w/400 Watts Heat
- Ext. Generator Plug
- Door Alarm Switches
- Fluorescent Light
- Spool-Up Side Box
- Ground Bar
- R3.3 Insulation
R7-62DDCW-ACD (120V) (Single Compartment/HVAC Cooled)
R7-62DDCW-ACD (120V)
- 62″H X 25″W X 34″D
- (19″ or 23″ Racking)
- 2 1/2 Sets of 19″ Rails
- 100 AMP Main Load Center w/Generator Plug & Manual
- Transfer Switch w/Spool-Up Box for Fiber for Cabling
- 6000 BTU Air Conditioner 110 Volts (-61=110 Volts)
R7-62DDCW-ACD (Single Compartment / HVAC Cooled)
R7-62DDCW-ACD (230V)
- UL & CSA Certified
- 62″H X 37″W X 44.5″D
- 6000 BTU 230 Volts with 400 Watts of Heat
- Ext. Generator Plug
- Door Alarm Switches
- Fluorescent Light
- Spool-Up Side Box
- Ground Bar
- R3.3 Insulation
- 2 Sets Standard EIA 19″ Racking
- 100 AMP Main Load Center w/Generator Plug & Manual
- Transfer Switch w/Spool-Up Box for Fiber for Cabling
- R7-62DDCW-ACD(120) = 120 Volt version
