R7-30DXCW (Single Compartment / HVAC Cooled)

ETL CertifiedUL Certified

spacer

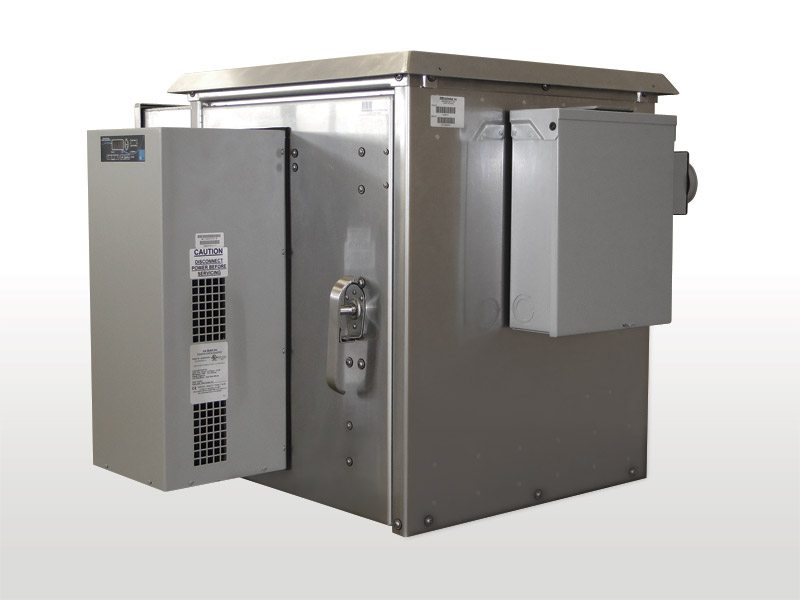

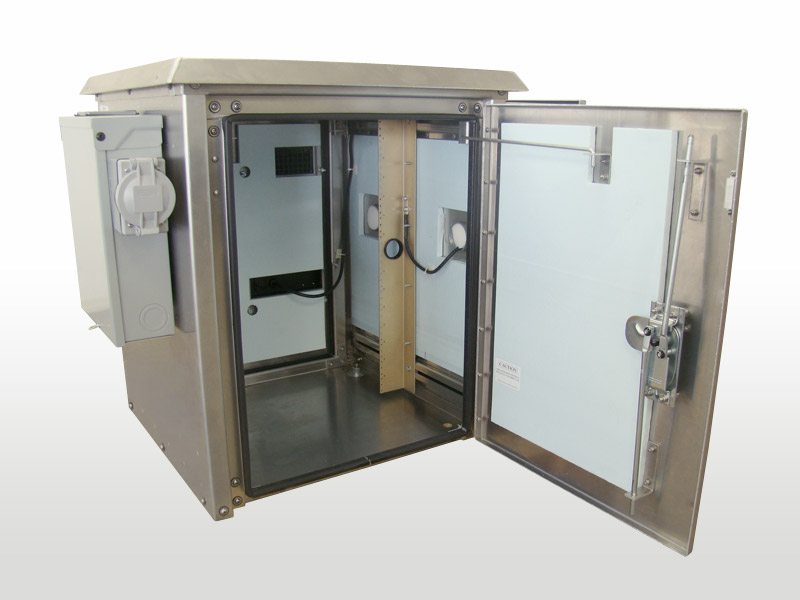

R7-30DXCW (230V)

  • UL & CSA Certified
  • 30″H X 25″W X 25″D(19″ Racking)
  • 2400 BTU 230 Volts with 400 Watts of Heat
  • Ext. Generator Plug
  • Door Alarm Switches
  • Fluorescent Light
  • Spool-Up Side Box
  • Ground Bar
  • R3.3 Insulation
  • R7-30DXCW(120) = 120 Volt version
spacer

These communication cabinets have a superior design, being as rigid as steel and yet noticeably lighter than the old heave steel constructed cabinets. This is made possible with our own aluminum recipe called Alumiflex™. It offers the protection needed for any severe outdoor environment. It’s constructed of .125” Alumiflex™ material and comes with an additional ” Alumishield™ top cover, thereby fully protecting your equipment from falling ice and the sun’s heat penetration.
Ultimate security is provided by a three point locking system, which utilizes NEMA stainless steel padlocking handles. It’s made of Alumiflex™, will operate without affecting, or being affected by, RF influences. Outdoor cabinets are becoming the alternative shelter solution for today’s complicated zoning requirements. So whether you’re installing a new shelter or adding room to your existing one, It’s the ultimate solution.

(CLICK ON TABS BELOW FOR MORE INFO)


Slide 1

Features

Alumishield™
Top cover, shades cabinet from the sun
Handles
Padlocking Stainless steel – NEMA
Rails
Fully adjustable & Alodine coated
Doors
Front and rear secured with three point locks and padlocking handles
Vents
Front & rear, top & bottom, filters supplied
Slide 2

Specifications

Weight
220 lbs. assembled
270 lbs. Shipping weight
Doors
Two – secured by three point locking system
Locks via customer supplied padlocks
sealed with 13/16″ aluminum filled gaskets
Material
.125” Alumiflex™
Finish: Flat aluminum
RF properties: Non-ferrous
R7-Model
Configuration comes with the following:
2400 BTU Air conditioner 110 Volts
(External Heat option)
w/ R3.3 Insulation,
Battery Box Enclosure w/Slide-Out Battery Tray
Handles
Stainless steel, padlocking
Exterior Screws
Stainless with NEMA washers & nylon locking nuts

Racking Specifications

Rails
Two standard (For additional rails see accessories)
Alodine coated
Holes tapped to 10 x 32 threads
Each rail supported by two R-STRUTS™
.125″ Material (Alumiflex™)
Spacing
19″ EIA Standard
Positioning
All rails fully adjustable from front to rear
Useable Height
30″ (Top Enclosure)
Useable Depth
Maximum: 21 1/2″ Minimum: 19 3/4″ (See below)
*Section Starting & Ending Points Vertical Height Per section Effective Depth For Each Section
Top 26.75″ – 30.00″ 3.25″ 21.50″
26.57″ – 26.75″ .18″ 20.50″
21.00″ – 26.57″ 5.57″ 21.50″
Center 9.00″ – 21.00″ 12.00″ 19.75″
3.43″ – 9.00″ 5.57″ 21.50″
3.25″ – 3.43″ .18″ 20.50″
Bottom 0.00″ – 3.25″ 3.25″ 21.50″

Door Opening Clearance

Height
25 13/16″
Width
19 1/2″

Exterior Cabinet Dimensions

Main Body
Width: 25 1/2″
Height: 46 1/4″
Depth: 25 1/4″
Alumishield™
Width: 28 1/16″
Hang down height: 1 3/4″
Depth: 29″
Handles
Protrude 1 7/8″
Total Space Occupied
Width: 28 1/16″
Height: 46 1/2″
Depth: 29″

Inside Clearance – Less Rails

Width
23 5/8″
Height
30″
Depth
See racking specs – useable depth chart above

Ratings

NEMA Class Types Available
NEMA 3R (Vented), NEMA 4 (closed loop-a/c) , NEMA 4X
Paint Tested
500 Hour salt spray
500 Hour immersion

Warranty

Period
15 Years – Unconditional
Slide 3

Accessory Options

R-2-30:
Two extra 30″ rails and mounting hardware
MTDX:
Mounting tray
CA-4:
Caster kit (4) & mounting hardware
Slide 4

Climate Control Options

Air Conditioners
Heater Options
AC & DC Fan Kits
Slide 5

Shipping Info

Standard The R7-30DXCW is shipped fully assembled, but can easily be knocked down and reassembled at your site, if desired.
