Outdoor Rackmount
DDB Unlimited has a full line of outdoor rack mount enclosures suitable for telecommunication equipment, controls and more. Our cabinets provide a safe place to house these electronic instruments from the weather and other environmental contaminants.
Single Door Outdoor | Traffic Enclosures | Enclosure Assemblies
Single Door Outdoor
37″H X 24″W X 20″D (20RU) SOD Outdoor Enclosure
SOD-372420
- 37″H X 24″W X 20″D
- 19″ Racking Rails (20RU)
- 1/4 Turn Padlocking Handle
SOD-372420-FT
- Single Fan Kit 110V w/ Thermostat
- Populated 4 Square Outlet
37″H X 24″W X 20″D / SOD Series LAC Model
OSOD-372420-LAC
- 37″H X 24″W X 20″D
- 19″ Racking Rails (20RU)
- Populated 4 Square Outlet
- 1/4 Turn Padlocking Handle
- 2400 Airconditioner 110V
- 60 Amp Main Load Center
- Fluorescent Light
Indoor/Outdoor Cabinet IOD-46DXC 46″H x 25″W x 30″D
IOD-46DXC
- 46″H X 25 3/4″W X 30 1/2″D
- 2 Sets of 19″ Racking Rails
- Lift Off Removeble Doors
- Rear Access Panel Above Rear Door
- Nema 3R, 4, 4X
- *Painted Cream
10″H X 21″W 20″D (5 RU) Outdoor Enclosure
OP2D-102120FT
- 10″H X 21″W X 20″D
- Front 19″ Racking
- Front adn Rear Door
- 1/4 Turn Key Locks
- Flat Unpainted
- (FT Model) Adds 110v Fan w/Thermostat
- Mounting Side Brackets
- Rain Guard
10″H X 24″W X 20″D (5 RU) Outdoor Enclosure
OPSOD-102420FT
- 10″H X 24″W X 20″D
- *110 V Fan w/Cord
- **110 V Fan Kit w/Thermostat
- NEMA 3R (Vented), NEMA 4 (closed loop-a/c) , NEMA 4X
10″H X 24″W X 20″D (5 RU) Outdoor Enclosure
PNOD-102420
- 10″H X 24″W X 20″D
- 19″Racking Rails (5 RU)
- Pole or Wall Side Mounting Feet
- 1/4 Turn Key Lock
- NEMA 4, 4X Rated
- **Enclosure Mounts Standard with Lid Vertical on Pole or Wall**
- 110 V Fan Kit w/Thermostat
- Populated Dual Single Gain Outlet
PNOD-102420-FT
POD-16DXC 16″H x 25″W x 25″D (7 RU) Outdoor Enclosure
POD-16DXC
- 16″H X 25″W X 25″D
- Front and Rear Doors
- Padlocking Handles
- Adjustable 19″ or 23″
Racking Rails - Alumishield® Design
- * (C) Painted Cream
19”H X 24″W X 20”D (9 RU) Outdoor Enclosure
OPSOD-192420-FT
- 19″H X 24″W X 20″D
- 19″ Racking Rails
- 110V Fan Kit w/ Adjustable Thermostat
- Pole or Wall Mountable
- 1/4 Turn Padlocking Handle
- NEMA 3R (Vented), NEMA 4 (closed loop-a/c) , NEMA 4X
19”H X 24″W X 20”D (10 RU) w/AC Outdoor Enclosure
OPSOD-192420-AC
- 19″H X 24″W X 20″D
- 19″ Racking Rails
- 1000 BTU Air Condtioner 110v
- 1/2″ Insulation
- Pole or WallMountable
- 1/4 Turn Padlocking Handle
-
NEMA 3R (Vented), NEMA 4 (closed loop-a/c) , NEMA 4X
25 “H x 17″D / Racking Battery Box / Outdoor Enclosure
PBOD-253017
PBOD-253017FT*
- Front and Top Door
- Standard with Filtered Vent Louvers
- * FT Adds 110v Fan w/Thermostat (Optional)
30”H X 24″W x 20”D (16 RU) Pole Mount Outdoor Enclosure
OPSOD-302420FT
- 30”H X 24″W x 20”D
- Outdoor Enclosure
- EIA 19″ Racking Rails
- Pole or Wall Mountable
- Stainless Steel Door Hinge
- 2 = 1/4 Turn Pad Locking Handles
- This is the FT Model
- Dual 110V Fan Kit w/Thermostat
- 4 Square Outlet
- NEMA 4, 4X Rated
30″H X 24″W X 20″D / Battery Rackmount WIFI – WIMAX Enclosure
OPSOD-302420-BTF
- 30″H X 24″W X 20″D
- (4) 12 Volt 100amp Hr Batteries
- Dual 110v Fan Kit w/ Thermostat
- R3.3 Insulation
- Full Front and 1/2 Rear Racking Rails
- NEMA 4, 4X Rated
37″H X 24″W X 20″D (20RU) SOD Outdoor Enclosure
SOD-372420
- 37″H X 24″W X 20″D
- 19″ Racking Rails (20RU)
- 1/4 Turn Padlocking Handle
SOD-372420-FT
- Single Fan Kit 110V w/ Thermostat
- Populated 4 Square Outlet
SOD-372420-VB1 / Outdoor WiMax Enclosure
SOD-372420-VB1
- 37″H X 24″W X 20″D
- 1 full and 1/2 Set of 19″ Racking Rails
- Populated 4 Square Outlet
- 1/4 Turn Padlocking Handle
- 2400 Airconditioner 110V
- 60 Amp Main Load Center
- Fluorescent Light
- 4 100 Amp/Hr Batteries
- Mounting Battery Tray
OSOD-372420-LAC / SOD Outdoor Enclosure
OSOD-372420-LAC
- 37″H X 24″W X 20″D
- 19″ Racking Rails (20RU)
- Populated 4 Square Outlet
- 1/4 Turn Padlocking Handle
- 2400 Airconditioner 110V
- 60 Amp Main Load Center
- Fluorescent Light
ZZ-SOD-372430-R-FT / Outdoor Enclosure
OZZ-SOD-372430-R
- 37″H X 24″W X 30″D
- 19″ Racking Rails (20RU)
- Dual Fan Kit 110V w/ Thermostat
- Populated 4 Square Outlet
- 1/4 Turn Padlocking Handle
PBOD-162018 Pole or Wall Mounting Battery Box Enclosures
PBOD-162018
- Pole or Wall Mount Outdoor Battery Box
- 16″H x 20″W x 18”D
- (Mounting Tray 4″H x 15 7/8 “W x 16 7/16″D)
- Top and Bottom Mounting Tab 2 7/8″
- Painted Cream
- Quarter Turn Padlocking Handle
- Top & Buttom Full Mounting Tab
- Slide Out Shelf
- Filter Panel
- Dual 110V Fan Kit w/Thermostat (Optional)
Traffic Enclosures
TR-336XL-WAL Traffic Enclosure (Pole or Pad Mountable)
TR-336XL-WAL
- 39″H X 26.75″D X 24.5″W.
- Traffic Control Desighn
- Removable 19″ Cage
- #2 Corbin Key Locks
- Pocket Door Pouch
- Single Fan Kit w/ Thermostat
- Door Rod
- 3 Point Pad Locking Handle
TRAFFIC BOX 36″H 24″W 24″D Front and Rear Doors w/ 3 Point Pad Locking # 2 Corbin Key Locks Vented Top w/ 110 CFM Fan kit w/ Thermostat Document pouch and J-hooks on rear door. Front and rear door switch brackets. 19″inch Removable Rack. One rack shelf for equipment. One pull-out shelf for computer use. Internal pole mount stiffeners welded to cabinet side walls. Two pole mounted brackets. Sunshields mounted on carriage bolts.
TR-336XL 39″H X 26.75″D X 24.5″W / Traffic Enclosures
TR-336XL
- 39″H X 26 3/4″D X 24.5″W
- Traffic Control Desighn
- Removable 19″ Cage
- Pocket Door Pouch
- Single Fan Kit w/ Thermostat
- Door Rod
- 3 Point Pad Locking Handle
TR-336XL-BAS-1 / Traffic Enclosures
TR-336XL-BAS-1
- 39″H X 26 3/4″D X 25″W
- Standard TR-336XL Enclosure
- BAS-TR MOUNTING BASE
- F-15-115T Single 110V Fan
w/Thermostat - 2 = MTDX Mounting Tray’s
- DOOR RODS
Traffic Enclosures TR-346XL
TR-346XL
- 49″H X 26.75″D X 24.5″W
- Outside - 45″ H X 26.25″ D X 24 ” W
- Inside - Traffic Control Desighn
- Removable 19″ Cage
- Pocket Door Pouch
- Single Fan Kit w/ Thermostat
- Door Rod
- 3 Point Pad Locking Handle
Outdoor Build Assemblies
OOD-30DXC-B1 46″H x 25″D / Outdoor Enclosure
OOD-30DX-B1
OOD-30DX-B2*
- OD-30DX (Top Enclosure)
- 30″H X 25″W X 25″D (Adjustable 19″ or 23″ Racking)
- B1 = 1 BOD-DX (Battery Box) (Bottom Enclosure)
- B2 = 2 BOD-DX (Battery Boxes) (Bottom Enclosure)
- Outdoor Battery Box 16″H X 25″W X 25″D (Mounting Tray 2″H X 18.75″W X 20″D)
- Populated 4 Square Outlet
- *Painted Cream
OOD-30DXC-B1AC1 46″H x 25″D / Outdoor Enclosure
OOD-30DXC-B1AC1
OOD-30DXC-B1AC2*
- OD-30DXC (Top Enclosure)
- 30″H X 25″W X 25″D
(19″ or 23″ Racking) - BOD-DX (Battery Box)
(Bottom Enclosure) - Outdoor Battery Box 16″H X 25″W X 25″D
- (Mounting Tray 2″H X 18.75″W X 20″D
- Painted Cream
- 2400 BTU Air conditioner 110 Volts w/ (External Heat option)
- * AC2 Brings on 220 V Air Conditioner
Indoor/Outdoor Cabinet IOD-46DXC 46″H x 25″W x 30″D
IOD-46DXC
- 46″H X 25 3/4″W X 30 1/2″D
- 2 Sets of 19″ Racking Rails
- Lift Off Removeble Doors
- Rear Access Panel Above Rear Door
- Nema 3R, 4, 4X
- *Painted Cream
54″H X 25″D LTE/4G Outdoor Enclosure w/AC 110 Volts & Side Box
OOD-54DX-GP-41
- 54″H X 25″W X 25″D(19″ Racking)
- 4000 BTU 110 Volts (-41=110 Volts) w/400 Watts Heat
- Ext. Generator Plug
- Door Alarm Switches
- Fluorescent Light
- Spool-Up Side Box
- Ground Bar
- R3.3 Insulation
54″H X 25″D LTE/4G Outdoor Enclosure w/220 Volt AC & Side Box
OOD-54DX-GP-42
- 54″H X 25″W X 25″D
(19″ Racking) - 4000 BTU 220 Volts (-42=220 Volts) W/ 400 WATTS HEAT
- 100 AMP Main w/ Electrical w/ Twist Lock
- Ext. Generator Plug
- Door Alarm Swith’s
- Fluorescent Light
- Spool-Up Side Box
- Ground Bar
- R3.3 Insulation
62″H X 34″D 4G/LTEE Wimax Outdoor Enclosure (-61=110 Volts)
OOD-62DD-GP-61
- 62″H X 25″W X 34″D
- Front and Rear Doors
- 3 Point Pad Locking Sytem
- Alumashield Desighn
- (19″ or 23″ Racking)
- 2 1/2 Sets of 19″ Rails
- 100 AMP Main Load Center w/Generator Plug & Manual
- Transfer Switch w/Spool-Up Box for Fiber for Cabling
- 6000 BTU Air Conditioner 110 Volts (-61=110 Volts)
More Info
62″H X 34″D 4G/LTEE Wimax Outdoor Enclosure (-62=220 Volts)
OOD-62DD-GP-62
- 62″H X 25″W X 34″D (19″ or 23″ Racking)
- Unpainted
- Front and Rear Doors
- 3 Point Pad Locking Handles
- 2 1/2 Sets OF 19″ Rails
- 100 AMP Main Load Center w/Generator Plug
- Spool-Up Box 26 x 22 x 10
- 6000 BTU Air Conditioner 220 Volts (-62=220 Volts)
Pole/Wall Small Box
OSVP-14127 | SB-14127 | SVP-18168 | OSVP-18168 | SB-18188AL | SB-24168 | SBPLY-24168
SBPLY-262210 | SBPLY-262210-C20 | SVP-302410 | OSVP-302410 | WCU-B14
14″H X 12″W X 7″D / Small Pole/Wall Mount Outdoor Enclosure
OSVP-14127
- 14″H X 12″W X 7″D
- Removable Aluminum Back Plate w/ 2 Key Locks
- Fan Kit w/ 100 Watt Heater Strip
- Top and Bottom Mounting Tabs
- Painted Cream
14″H X 12″W X 7″D / Small Pole/Wall Mount Outdoor Enclosure
SB-14127
- 14”H X 12″W x 7”D
- Removable Aluminum Back Plate
- Optional Filtered vent louvers, removable aluminum
- Optional plywood back plate
- * Painted cream
18″H X 16″W X 8″D / Small Pole/Wall Mount Outdoor Enclosure
SVP-18168
- 18″H X 16″W X 8″D
- Filtered Vent Louvers
- Removable Aluminum Back Plate
- Optional plywood back plate
- * Powder Baked on Textured Cream Paint
18″H X 16″W X 8″D / Small Pole/Wall Mount Outdoor Enclosure w/Fan & Heater
OSVP-18168
OSVPLY-18168*
- 18″H X 16″W X 8″D
- Fan/w thermostat, 100w heater, 110 Volt 4 square
- Filtered Vent Louvers
- Removable Aluminum Back Plate
- Optional plywood back plate
- * Powder Baked on Textured Cream Paint
SB-18188AL 18″H X 18″W X 8″D / Small Outdoor
SB-18188AL
- 18″H X 18″W X 8″D
- 2 fans/w thermostat, 4 square outlet,
- Removable plywood back plate and insulation
- Alumishield® top roof design

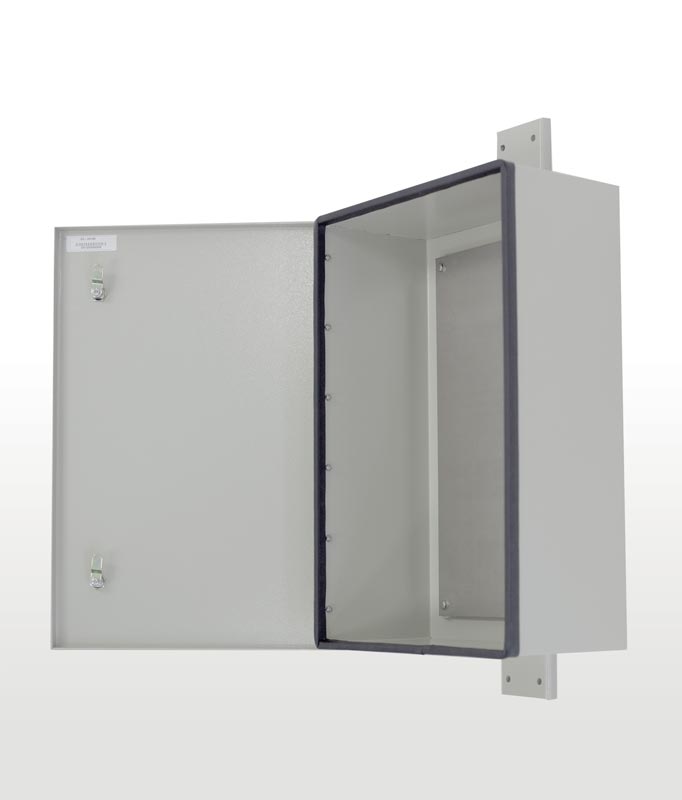

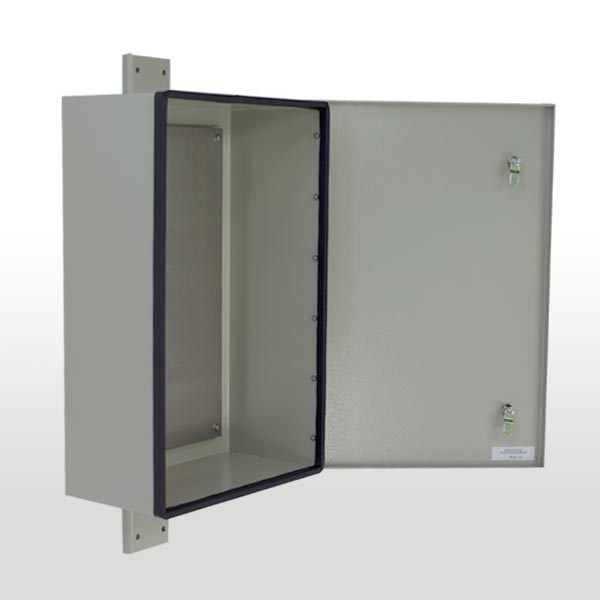

SB-24168 24″H X 16″W X 8″D / Small Outdoor
SB-24168
- 24″H X 16″W X 8″D
- Removable aluminum back plate
- 2 Key locks
- Painted cream
SBPLY-24168 24″H X 16″W X 8″D / Small Outdoor
SBPLY-24168
- 24″H X 16″W X 8″D
- Removable plywood back plate
- 2 Key locks
- Painted cream
SBPLY-262210-AC1MR 26″H X 22″W X 10″D / Small Outdoor W/ AC
SBPLY-262210-AC1MR
- 26″H X 22″W X 10″D
- Removable plywood back plate
- 2 Quarter turn key locks
- AC-1000 BTU AC
- 100 Watt Heater
- Populated 4 Sq
- .5 Insulation

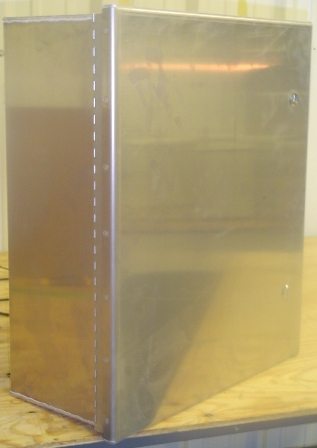

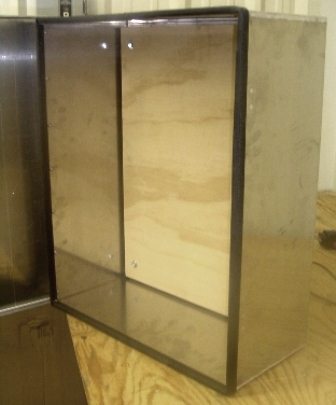

SBPLY-262210 26″H X 22″W X 10″D / Small Outdoor
SBPLY-262210
- 26″H X 22″W X 10″D
- Removable plywood back plate
- 2 Quarter turn key locks

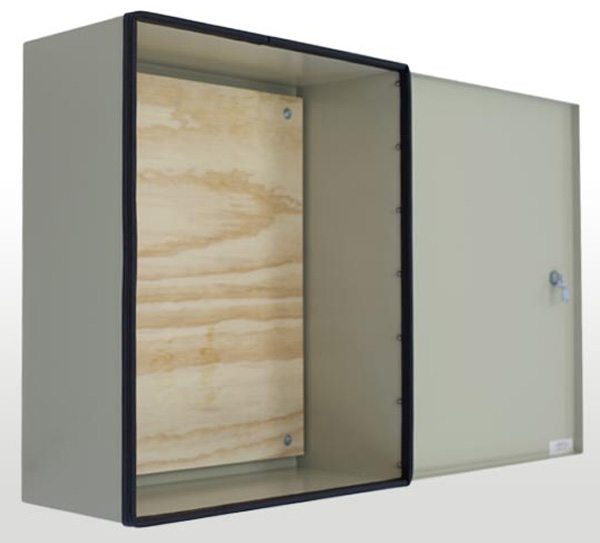

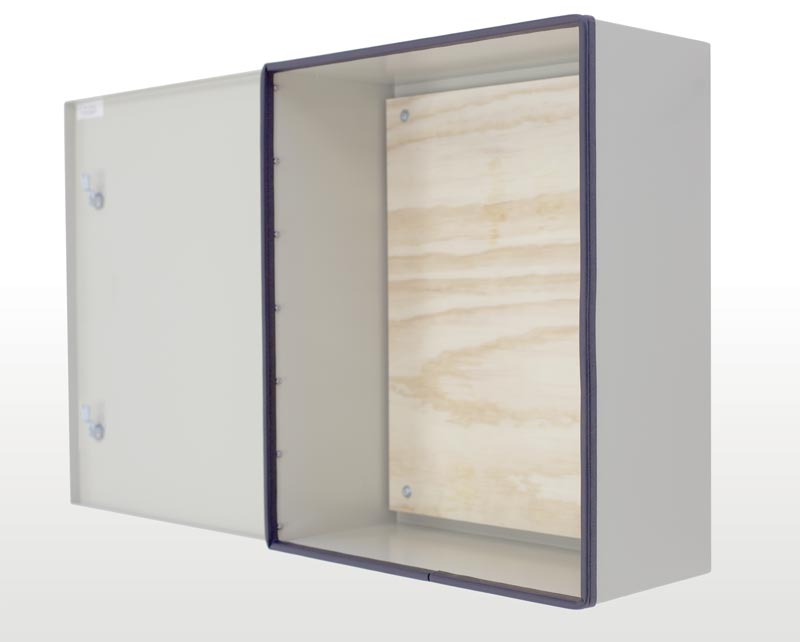

SBPLY-262210C 26″H X 22″W X 10″D / Small Outdoor
SB-262210C
- 26″H X 22″W X 10″D
- Removable plywood back plate
- 2 Quarter Turn Key Locks
- Populated 4 square outlet
- Painted Textured Cream

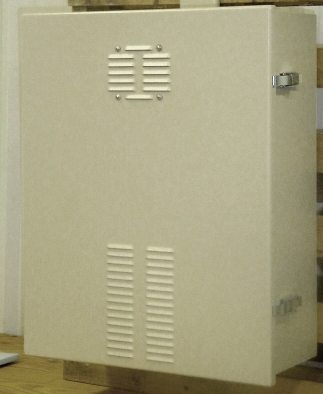

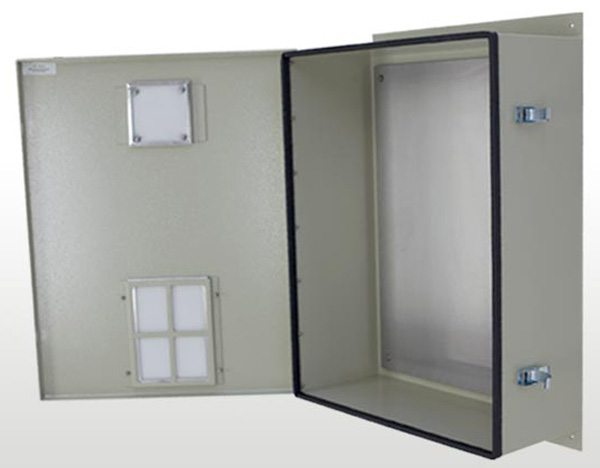

SVP-302410 30″H X 24″W X 10″D / Small Outdoor
SVP-302410
- 30″H X 24″W X 10″D
- Removable aluminum inside plate
- Filtered vent louvers
- Painted cream

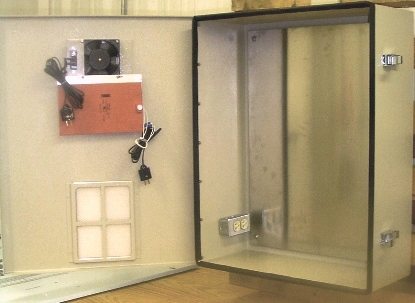

OSVP-302410 30″H X 24″W X 10″D / Small Outdoor
OSVP-302410
- 30″H X 24″W X 10″D
- Removable aluminum inside plate
- Filtered vent louvers
- 110V Fan with thermostat
- 100 Watt heater
- Single gain outlet
- Painted cream

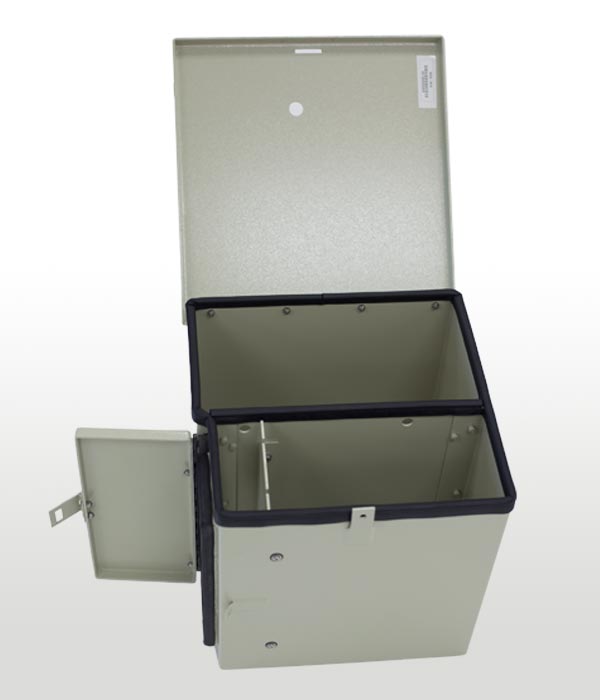

WCU-B14 14″ SQUARE / OUTDOOR DATA BOX
WCU-B14
- 14″H X 14″D X 14″W
- Wireless Control Unit
- Painted cream
Indoor Rackmount
ST-Series | ST-30D | ST-30DX | ST-30DD | ST-42D | ST-42DX | ST-42DD | ZZ-ST-62DXB
SY-Series | SY-32DXL | SY-42DXL | SY-50DXL | SY-72DXL
ST Series Indoor NEMA Enclosures

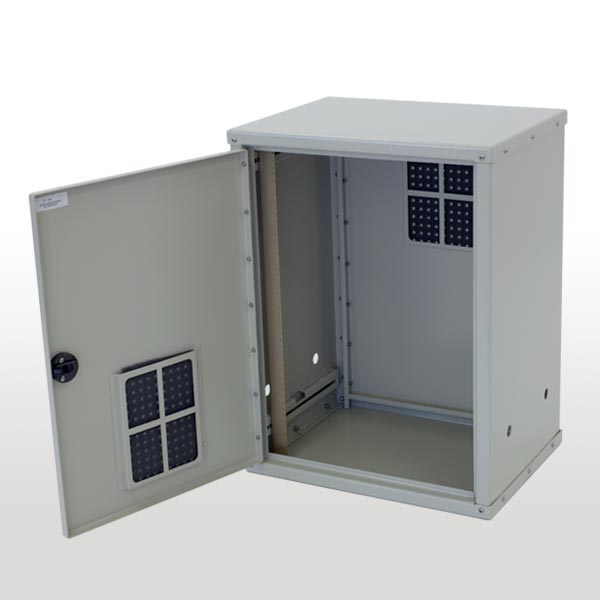

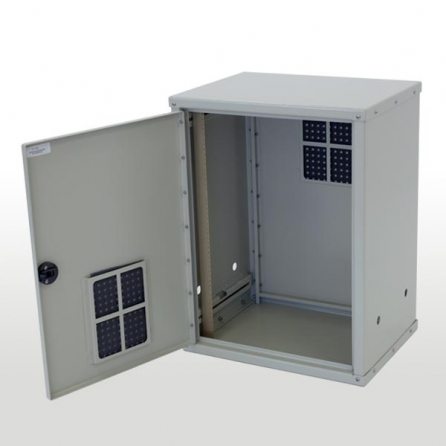

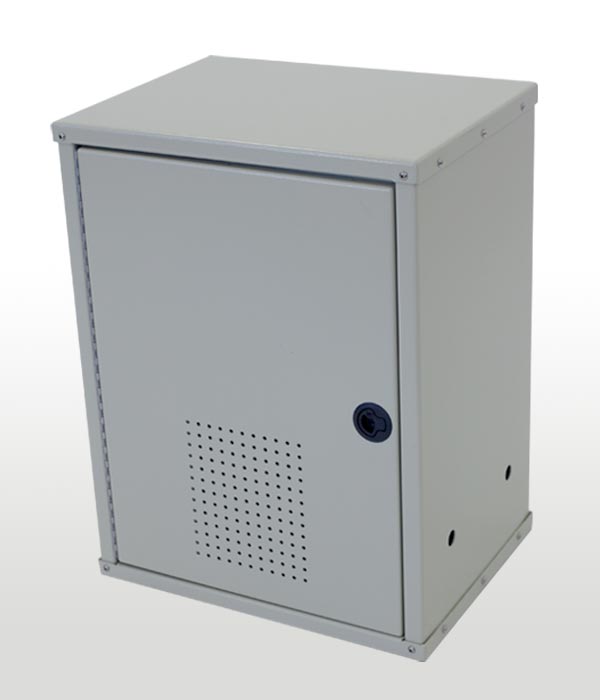

30″H X 17″D / Indoor Rackmount Enclosure
ST-30D
- 30″H X 17″D X 23″W
- Adjustable 19″ Racking
- Front and Rear Doors
- Foam Filtered Vents
- Powder Baked-On Cream Paint
- Lockable
30″H X 25″D / Indoor Rackmount Enclosure
ST-30DX
- 30″H X 23″W X 25″D
- Adjustable 19″ Racking
- Front and Rear Doors
- Foam Filtered Vents
- Powder Baked-On Cream Paint
- Lockable
30″H X 34″D / Indoor Rackmount Enclosure
ST-30DD
- 30″H X 23″W X 34″D
- Adjustable 19″ Racking
- Front and Rear Doors
- Foam Filtered Vents
- Powder Baked-On Cream Paint
- Lockable
42″H X 17″D / Indoor Rackmount Enclosure
ST-42D
- 42″H X 23″W X 17″D
- Adjustable 19″ Racking
- Front and Rear Doors
- Foam Filtered Vents
- Powder Baked-On Cream Paint
- Lockable
42″H X 25″D / Indoor Rackmount Enclosure
ST-42DX
- 42″H X 23″W X 25″D
- Adjustable 19″ Racking
- Front and Rear Doors
- Foam Filtered Vents
- Powder Baked-On Cream Paint
- Lockable
The ST-42DX is a new design on communication cabinets, being as rigid as steel & yet noticeably lighter than the old heavy steel constructed cabinets. This is made possible with our own aluminum recipe called Alumiflex®. The ST series are the most versatile cabinets in the market place today. Being designed for our continuously changing industry, the ST series is ahead of the competition in cost, weight, and expansion capabilities.
Unlike the steel cabinets, our ST-42DX, made of Alumiflex®, will operate without affecting or being affected by RF influences. Order our ST-42DX, the new industry standard, and take care of today’s needs while at the same time preparing for tomorrow’s expansion requirements.
More Info
42″H X 34″D / Indoor Rackmount Enclosure
ST-42DD
- 42″H X 23″W X 34″D
- Adjustable 19″ Racking
- Front and Rear Doors
- Foam Filtered Vents
- Powder Baked-On Cream Paint
- Lockable
The ST-42DD is a new design in communication cabinets, being as rigid as steel & yet noticeably lighter than the old heavy steel constructed cabinets. This is made possible with our own aluminum recipe called Alumiflex®. The ST series are the most versatile cabinets in the market place today. Being designed for our continuously changing industry, the ST series is ahead of the competition in cost, weight and expansion capabilities.
Unlike the steel cabinets, our ST-42DD, made of Alumiflex®, will operate without affecting or being affected by RF influences. Order our ST-42DD, the new industry standard, and take care of today’s needs while at the same time preparing for tomorrow’s expansion requirements.
62″H X 25″D / Indoor Rackmount Cabinet
ST-62DXB
- 62″H X 25″D X 23″W (19″ Racking)
SY Series Indoor NEMA Enclosures
32″H X 23″W X 25″D / Indoor Racking Cabinet w/ Lexan Door
SY-32DXL
- 32″H X 23″W X 25″D
Cabinet Includes the Following:
- 2 Sets of 19″ Racking Rails
- 2 Standard Mounting Trays
- Fan Kit w/ Thermostat
- Front Lexan Window
- Side Lifting Handles
- Leveling Feet
- Removeable Front and Rear Doors
42″H X 23″W X 25″D / Indoor Racking Cabinet w/ Lexan Door
SY-42DXL
- 42″H X 23″W X 25″D
Cabinet Includes the Following:
- 2 Sets of 19″ Racking Rails
- 2 Standard Mounting Trays
- Fan Kit w/ Thermostat
- Front Lexan Window
- Side Lifting Handles
- Leveling Feet
- Removeable Front and Rear Doors
50″H X 25″D X 23″W / Indoor Racking Cabinet w/ Lexan Door
SY-50DXL
- 50″H X 23″W X 25″D (19″ Racking)
CABINET INCLUDES THE FOLLOWING:
- 2 SETS OF 19″ EIA Racking Rails
- 2 Standard MOUNTING TRAYS
- FAN KIT W/ THERMOSTAT
- FRONT LEXAN WINDOW
- SIDE LIFTING HANDLES
- LEVELING FEET
- LIFT OFF FRONT AND BACK DOORS
72″H X 25″D X 23″W / Indoor Racking Cabinet w/ Lexan Door
SY-72DXL
- 72″H X 23″W X 25″D (19″ Racking)
Cabinet Includes Below Specs:
- 2 SETS OF 19″ EIA Racking Rails
- 2 Standard MOUNTING TRAYS
- FAN KIT W/ THERMOSTAT
- FRONT LEXAN WINDOW
- SIDE LIFTING HANDLES
- LEVELING FEET
- LIFT OFF FRONT AND BACK DOORS
The SY-Series is the superior design in communication cabinets, being as rigid as steel & yet noticeably lighter than the old heavy steel constructed cabinets. This is made possible with our own aluminum recipe called Alumiflex®. The SY-Series offers a rigid see thru Lexan front door. The standard features of this enclosure is listed below.
Outdoor Battery Compartment Enclosures
CLICK PIC TO ENLARGE
BOD-DX
- 16″ High x 25″Deep
- (Tray 2″ H X 18.75″W X 20 “D)
- *C = Painted Cream
BOD-DD
- 16″ High x 34″Deep
- (Tray 2″ H X 18.75″W X 29″D)
- *C = Painted Cream
BOD-DDX
- 16″ High x 42″Deep
- (Tray 2″ H X 18.75″W X 37″D)
- *C = Painted Cream
2BOD-DX or 3BOD-DX
- 16″ High x 25″Deep
- (Tray 2″ H X 22″W X 20 “D)
- *C = Painted Cream
2BOD-DD or 3BOD-DD
- 16″ High x 34″Deep
- (Tray 2″ H X 22″W X 29″D)
- *C = Painted Cream
2BOD-DDX or 3BOD-DDX
- 16″ High x 42″Deep
- (Tray 2″ H X 22″W X 37″D)
- *C = Painted Cream
Door Opening w/Gasket is 11.25″H
PBOD-162018 Pole or Wall Mounting Battery Box Enclosures
PBOD-162018
- Pole or Wall Mount Outdoor Battery Box
- 16″H x 20″W x 18”D
- (Mounting Tray 4″H x 15 7/8 “W x 16 7/16″D)
- Top and Bottom Mounting Tab 2 7/8″
- Painted Cream
- Quarter Turn Padlocking Handle
- Top & Buttom Full Mounting Tab
- Slide Out Shelf
- Filter Panel
- Dual 110V Fan Kit w/Thermostat (Optional)
Climate Control • Power Distribution • Enclosure Construction
DDB Unlimited is an OEM NEMA Outdoor Cabinet Enclosure Manufacturer. We provide adjustable 19" or 23" racking, front and rear doors with 3 point locking system, NEMA 4, 4X, air conditioners, heaters, fans and batteries. Power options are available for our telecommunication enclosures.
Configuration • Customization • Accessories • Customer Service
8445 Highway 77 North
Wynnewood, OK 73098
T: (800) 753-8459
F: (877) 220-7236
© Copyright 2010 DDB Unlimited. All rights reserved. | Privacy Policy | Site Map
