Outdoor Rackmount
DDB Unlimited has a full line of outdoor rack mount enclosures suitable for telecommunication equipment, controls and more. Our cabinets provide a safe place to house these electronic instruments from the weather and other environmental contaminants.
Single Door Outdoor | Traffic Enclosures | Enclosure Assemblies
The OD series outdoor enclosure is the ultimate choice for your outdoor racking requirements. Being made of our own Alumiflex®, you’ll find it noticeably lighter than steel, yet strong enough to rack even the heaviest equipment. Being designed to accommodate the weather protection of your choice, the OD series enclosures are available in NEMA 3R, 4, or 4X configurations. The additional Alumishield® (sun roof), provides superior solar protection with it’s large overhang roof design. Our own versatile strut system allows you to position the racking rails at any depth desired within the enclosure. You can rest assured your equipment is safe and secure as you pad lock the front and rear door handles, knowing they hold the three points locking system securely intact. The OD series enclosures are available in various heights and depths, and they are available in dual and triple bay versions as well. Our professional Sales staff and CAD-Engineering team are able to assist you with a state of the art design, a competitive price, and a guaranteed delivery.
TRAFFIC BOX 36″H 24″W 24″D Front and Rear Doors w/ 3 Point Pad Locking # 2 Corbin Key Locks Vented Top w/ 110 CFM Fan kit w/ Thermostat Document pouch and J-hooks on rear door. Front and rear door switch brackets. 19″inch Removable Rack. One rack shelf for equipment. One pull-out shelf for computer use. Internal pole mount stiffeners welded to cabinet side walls. Two pole mounted brackets. Sunshields mounted on carriage bolts.
The OD series outdoor enclosure is the ultimate choice for your outdoor racking requirements. Being made of our own Alumiflex®, you’ll find it noticeably lighter than steel, yet strong enough to rack even the heaviest equipment. Being designed to accommodate the weather protection of your choice, the OD series enclosures are available in NEMA 3R, 4, or 4X configurations. The additional Alumishield® (sun roof), provides superior solar protection with it’s large overhang roof design. Our own versatile strut system allows you to position the racking rails at any depth desired within the enclosure. You can rest assured your equipment is safe and secure as you pad lock the front and rear door handles, knowing they hold the three points locking system securely intact. The OD series enclosures are available in various heights and depths, and they are available in dual and triple bay versions as well. Our professional Sales staff and CAD-Engineering team are able to assist you with a state of the art design, a competitive price, and a guaranteed delivery.
Single Door Outdoor

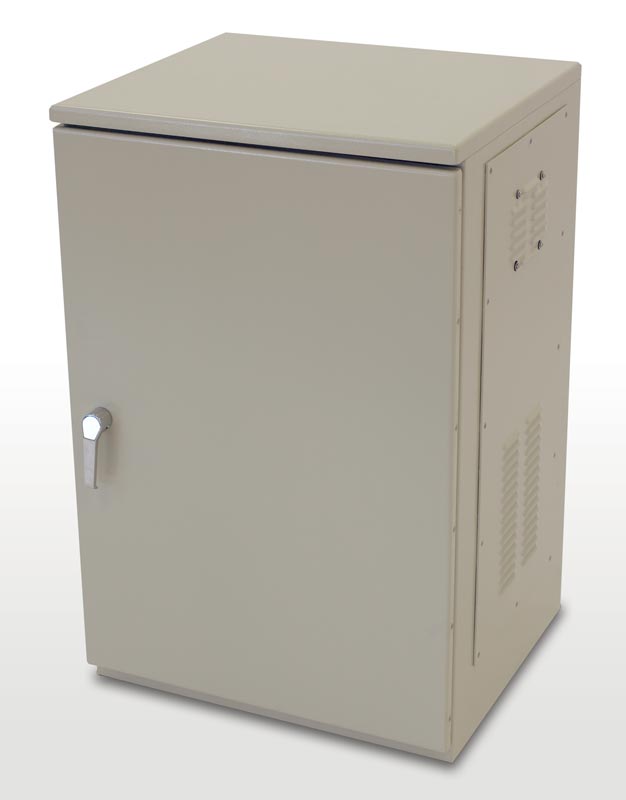

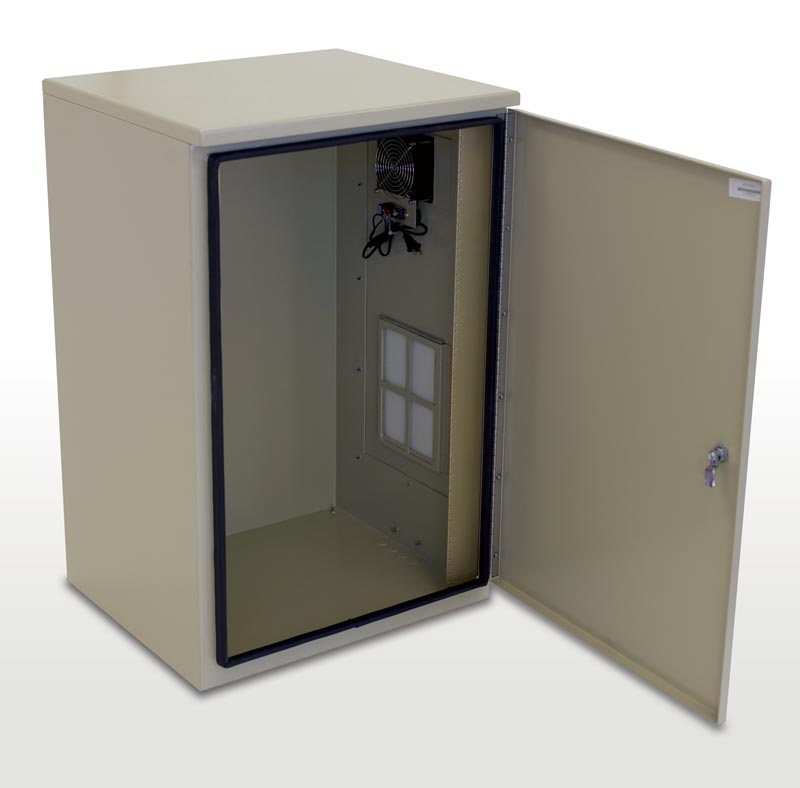

37″H X 24″W X 20″D (20RU) SOD Outdoor Enclosure
SOD-372420
- 37″H X 24″W X 20″D
- 19″ Racking Rails (20RU)
- 1/4 Turn Padlocking Handle
SOD-372420-FT
- Single Fan Kit 110V w/ Thermostat
- Populated 4 Square Outlet
More Info
37″H X 24″W X 20″D / SOD Series LAC Model
OSOD-372420-LAC
- 37″H X 24″W X 20″D
- 19″ Racking Rails (20RU)
- Populated 4 Square Outlet
- 1/4 Turn Padlocking Handle
- 2400 Airconditioner 110V
- 60 Amp Main Load Center
- Fluorescent Light
More Info
Indoor/Outdoor Cabinet IOD-46DXC 46″H x 25″W x 30″D
IOD-46DXC
- 46″H X 25 3/4″W X 30 1/2″D
- 2 Sets of 19″ Racking Rails
- Lift Off Removeble Doors
- Rear Access Panel Above Rear Door
- Nema 3R, 4, 4X
- *Painted Cream
More Info

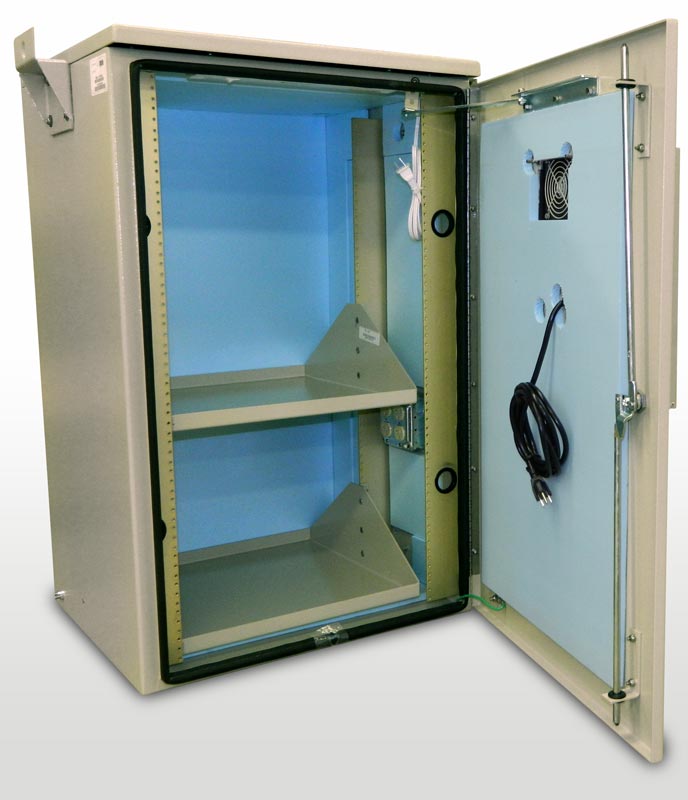

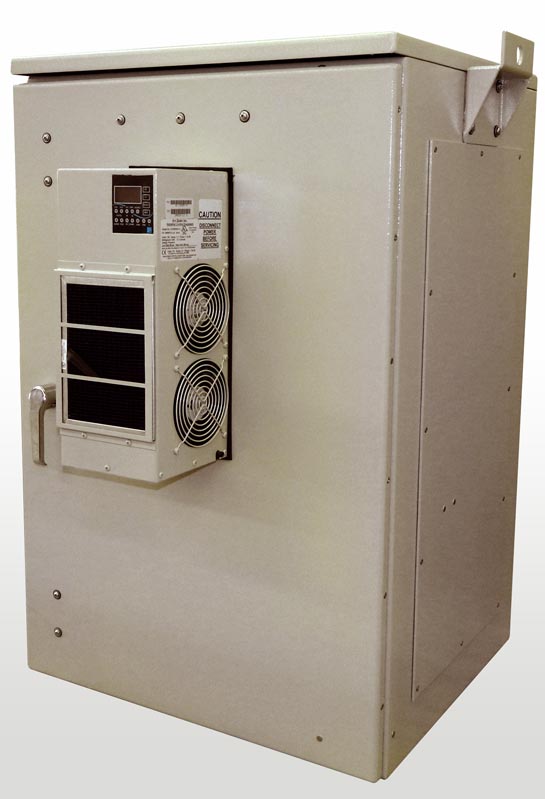

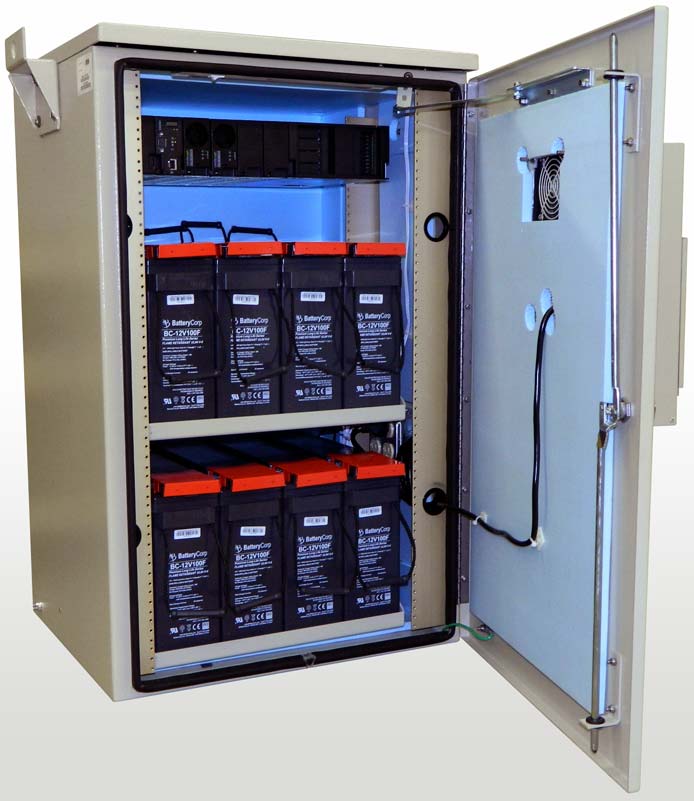

Racking Battery Enclosure 37″H x 24″W x 20″D
BSOD-372420-AC-T2
- 37″H X 24″W X 20″D Standard Cabinet
- 2 = 19″ Racking Rails (40RU)
- 3 Point Padlocking Handle
- Populated 4 Square Outlet
- 1000 BTU AC Mini 110V Click Her for Specs
- .5 Insulation
- 2 Center Mount Battery Tray’s 17″D x 17 1/2″W
- Flourescent Light
- Door Windlock
- Lifting Hooks
- Less Batteries
- **POWER SUPPLY NOT INCLUDED**
BSOD-372420-AC-TB1
- 1 String of Battery’s & Tray (Top Racking 16 RU’s Available)
BSOD-372420-AC-TB2
- 2 String of Battery’s & Tray’s (Top Racking 9 RU’s Available)
BSOD-372420-AC-T1
- 1 Battery Tray, Less Batteries (Top Racking 16 RU’s Available)
BSOD-372420-AC-T2
- 2 Battery Tray’s, Less Batteries (Top Racking 9 RU’s Available)
Recommended Battery to use is our VBB-BC-12V100FT
Also comes in a 40Hx28Wx28D Ver. also BSOD–482828-AC2-T2
More Info
Racking Battery Enclosure 40″H x 28″W x 28″D
BSOD-402828-AC2-T2
- 40″H X 28″W X 28″D Standard Cabinet
- Front Set of 19″ Racking Rails
- Center Set of 23″Racking Rails
- 3 Point Padlocking Handle
- Populated 4 Square Outlet
- 2400 BTU AC 110V Click Her for Specs
- .5 Insulation
- 2 Center Mount Battery Tray’s 25”W x 24”D
- Flourescent Light
- Door Windlock
- Lifting Hooks
- Less Batteries
- **POWER SUPPLY NOT INCLUDED**
BSOD-402828-AC2-TB1
- 1 String of Battery’s & Tray
BSOD-402828-AC2-TB2
- 2 String of Battery’s & Tray’s
BSOD-402828-AC2-T1
- 1 Battery Tray, Less Batteries
More Info

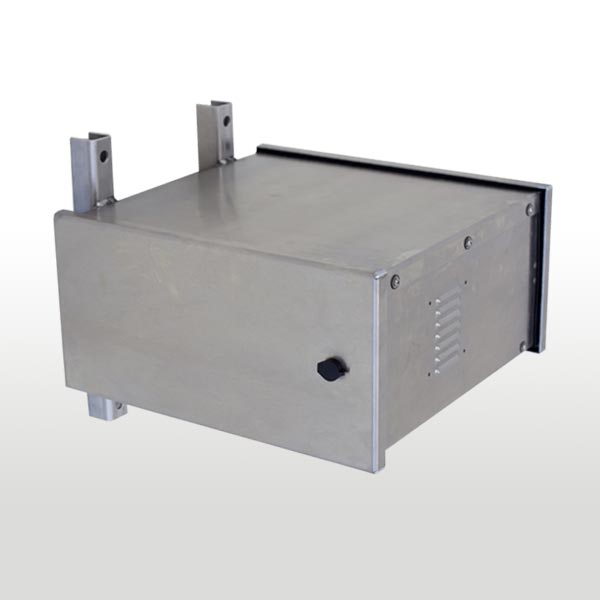

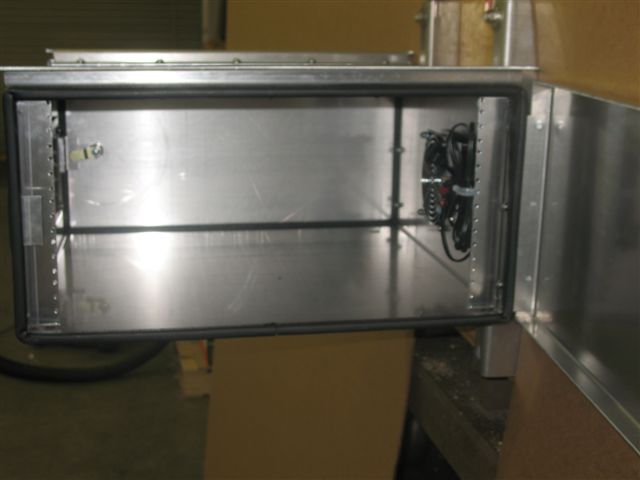

10″H X 21″W 20″D (5 RU) Outdoor Enclosure
OP2D-102120FT
- 10″H X 21″W X 20″D
- Front 19″ Racking
- Front and Rear Door
- 1/4 Turn Key Locks
- Flat Unpainted
- (FT Model) Adds 110v Fan w/Thermostat
- Mounting Side Brackets
- Rain Guard
More Info
10″H X 24″W X 20″D (5 RU) Outdoor Enclosure
OPSOD-102420FT
- 10″H X 24″W X 20″D
- *110 V Fan w/Cord
- **110 V Fan Kit w/Thermostat
- NEMA 3R (Vented), NEMA 4 (closed loop-a/c) , NEMA 4X
More Info
10″H X 24″W X 20″D (5 RU) Outdoor Enclosure
PNOD-102420
- 10″H X 24″W X 20″D
- 19″Racking Rails (5 RU)
- Pole or Wall Side Mounting Feet
- 1/4 Turn Key Lock
- NEMA 4, 4X Rated
- **Enclosure Mounts Standard with Lid Vertical on Pole or Wall**
- 110 V Fan Kit w/Thermostat
- Populated Dual Single Gain Outlet
PNOD-102420-FT
More Info
POD-16DXC 16″H x 25″W x 25″D (7 RU) Outdoor Enclosure
POD-16DXC
- 16″H X 25″W X 25″D
- Front and Rear Doors
- Padlocking Handles
- Adjustable 19″ or 23″ Racking Rails
- Alumishield® Design
- * (C) Painted Cream
More Info

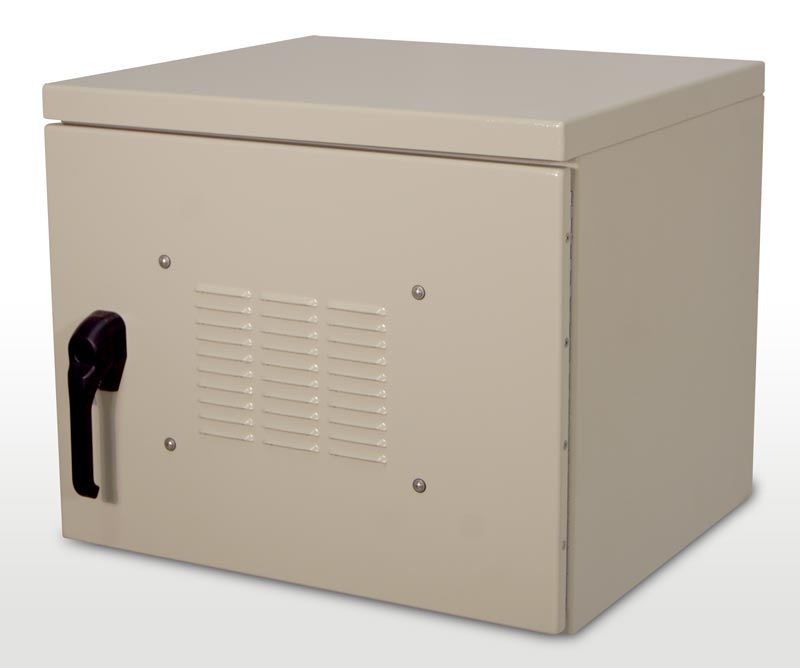

19”H X 24″W X 20”D (9 RU) Outdoor Enclosure
OPSOD-192420-FT
- 19″H X 24″W X 20″D
- 19″ Racking Rails
- 110V Fan Kit w/ Adjustable Thermostat
- Pole or Wall Mountable
- 1/4 Turn Padlocking Handle
- NEMA 3R (Vented), NEMA 4 (closed loop-a/c) , NEMA 4X
More Info
19”H X 24″W X 20”D (10 RU) w/AC Outdoor Enclosure
OPSOD-192420-AC
- 19″H X 24″W X 20″D
- 19″ Racking Rails
- 1000 BTU Air Condtioner 110v
- 1/2″ Insulation
- Pole or WallMountable
- 1/4 Turn Padlocking Handle
-
NEMA 3R (Vented), NEMA 4 (closed loop-a/c) , NEMA 4X
More Info
25 “H x 17″D / Racking Battery Box / Outdoor Enclosure
PBOD-253017
PBOD-253017FT*
- Front and Top Door
- Standard with Filtered Vent Louvers
- * FT Adds 110v Fan w/Thermostat (Optional)
More Info
30”H X 24″W x 20”D (16 RU) Pole Mount Outdoor Enclosure
OPSOD-302420FT
- 30”H X 24″W x 20”D
- Outdoor Enclosure
- EIA 19″ Racking Rails
- Pole or Wall Mountable
- Stainless Steel Door Hinge
- 2 = 1/4 Turn Pad Locking Handles
- This is the FT Model
- Dual 110V Fan Kit w/Thermostat
- 4 Square Outlet
- NEMA 4, 4X Rated
More Info
30″H X 24″W X 20″D / Battery Rackmount WIFI – WIMAX Enclosure
OPSOD-302420-BTF
- 30″H X 24″W X 20″D
- (4) 12 Volt 100amp Hr Batteries
- Dual 110v Fan Kit w/ Thermostat
- R3.3 Insulation
- Full Front and 1/2 Rear Racking Rails
- NEMA 4, 4X Rated
More Info
37″H X 24″W X 20″D (20RU) SOD Outdoor Enclosure
SOD-372420
- 37″H X 24″W X 20″D
- 19″ Racking Rails (20RU)
- 1/4 Turn Padlocking Handle
SOD-372420-FT
- Single Fan Kit 110V w/ Thermostat
- Populated 4 Square Outlet
More Info
SOD-372420-VB1 / Outdoor WiMax Enclosure
SOD-372420-VB1
- 37″H X 24″W X 20″D
- 1 full and 1/2 Set of 19″ Racking Rails
- Populated 4 Square Outlet
- 1/4 Turn Padlocking Handle
- 2400 Airconditioner 110V
- 60 Amp Main Load Center
- Fluorescent Light
- 4 100 Amp/Hr Batteries
- Mounting Battery Tray
More Info

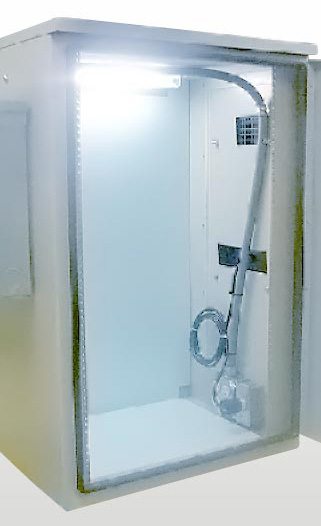

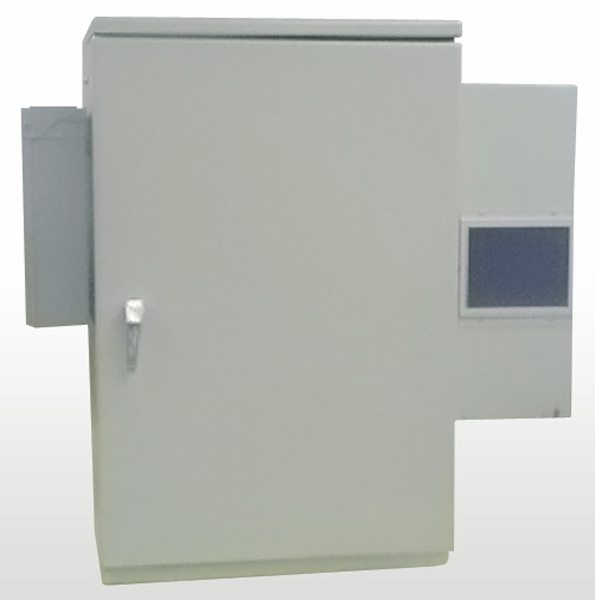

OSOD-372420-LAC / SOD Outdoor Enclosure
OSOD-372420-LAC
- 37″H X 24″W X 20″D
- 19″ Racking Rails (20RU)
- Populated 4 Square Outlet
- 1/4 Turn Padlocking Handle
- 2400 Airconditioner 110V
- 60 Amp Main Load Center
- Fluorescent Light
More Info

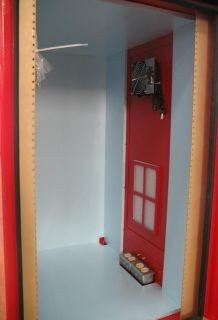

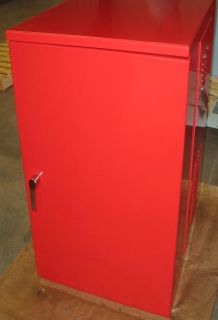

ZZ-SOD-372430-R-FT / Outdoor Enclosure
OZZ-SOD-372430-R
- 37″H X 24″W X 30″D
- 19″ Racking Rails (20RU)
- Dual Fan Kit 110V w/ Thermostat
- Populated 4 Square Outlet
- 1/4 Turn Padlocking Handle
More Info

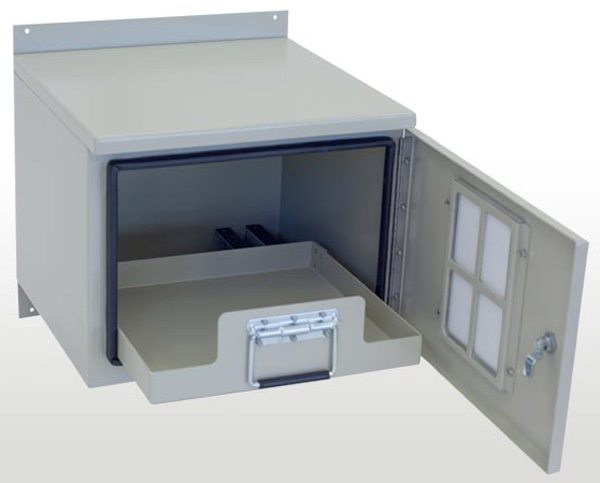

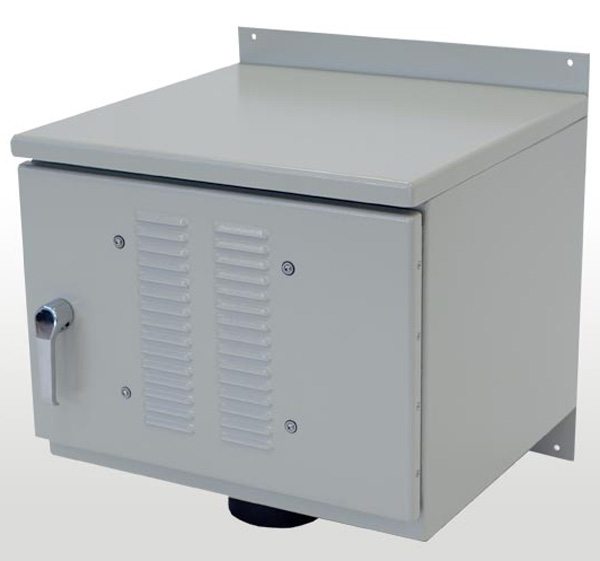

PBOD-162018 Pole or Wall Mounting Battery Box Enclosures
PBOD-162018
- Pole or Wall Mount Outdoor Battery Box
- 16″H x 20″W x 18”D
- (Mounting Tray 4″H x 15 7/8 “W x 16 7/16″D)
- Top and Bottom Mounting Tab 2 7/8″
- Painted Cream
- Quarter Turn Padlocking Handle
- Top & Buttom Full Mounting Tab
- Slide Out Shelf
- Filter Panel
- Dual 110V Fan Kit w/Thermostat (Optional)
More Info
Traffic Enclosures

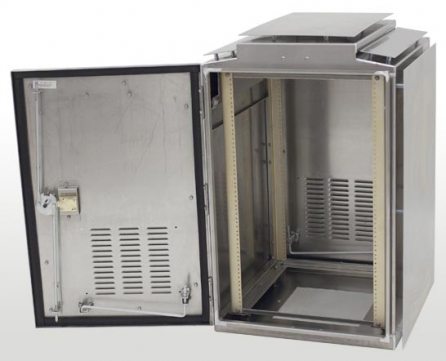

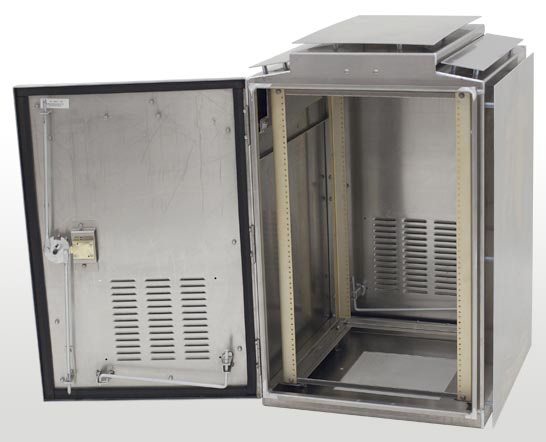

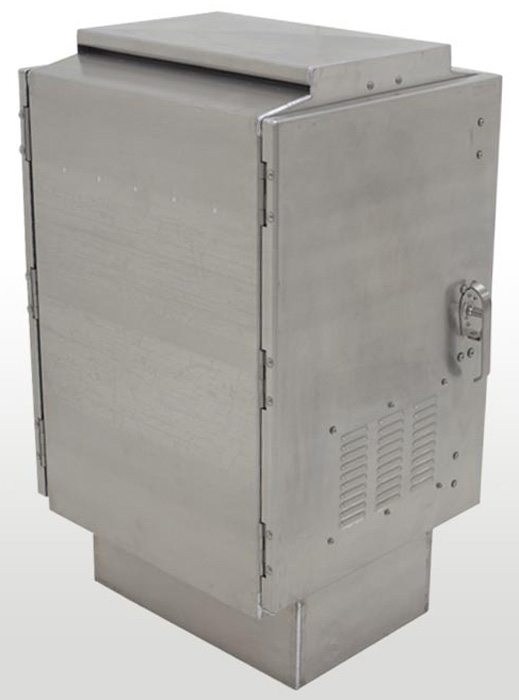

TR-336XL-WAL Traffic Enclosure (Pole or Pad Mountable)
TR-336XL-WAL
- 39″H X 26.75″D X 24.5″W.
- Traffic Control Desighn
- Removable 19″ Cage
- #2 Corbin Key Locks
- Pocket Door Pouch
- Single Fan Kit w/ Thermostat
- Door Rod
- 3 Point Pad Locking Handle
More Info

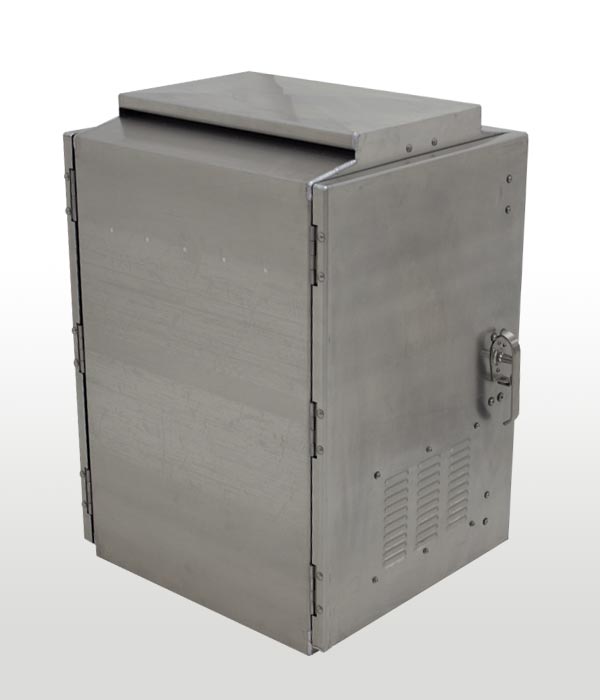

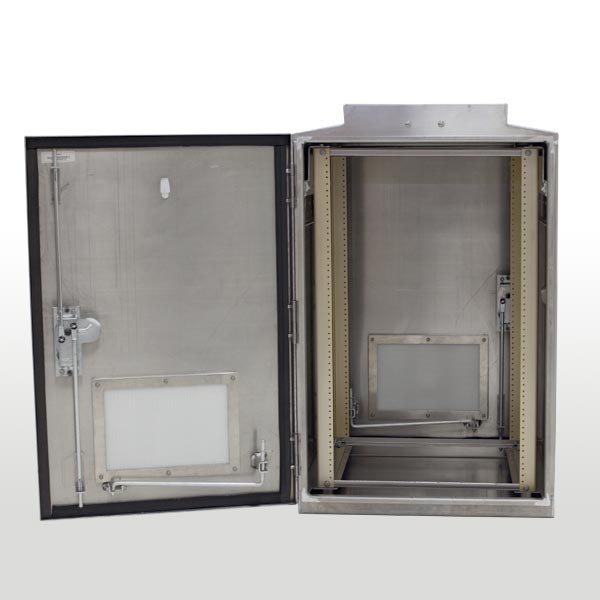

TR-336XL 39″H X 26.75″D X 24.5″W / Traffic Enclosures
TR-336XL
- Total Occupied Space 39″H X 26 3/4″D X 24.5″W
- Racking Space: 20″ Deep X 19″ EIA Racking Width, with 17 RU’s
- Traffic Control Desighn
- Removable 19″ Cage
- Pocket Door Pouch
- Single Fan Kit w/ Thermostat
- Door Rod
- 3 Point Pad Locking Handle
More Info

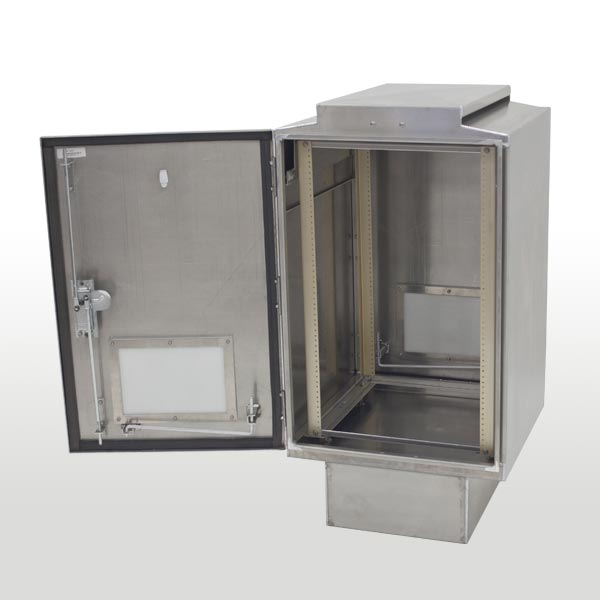

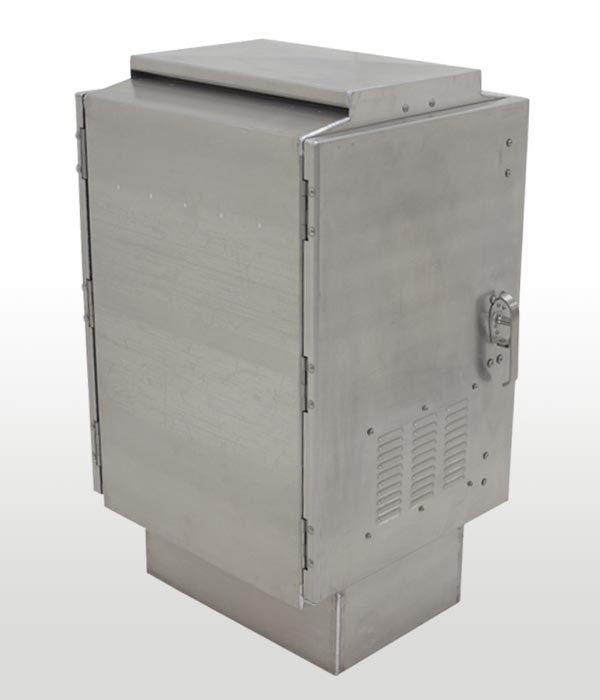

TR-336XL-BAS-1 / Traffic Enclosures
TR-336XL-BAS-1
- 39″H X 26 3/4″D X 25″W
- Standard TR-336XL Enclosure
- BAS-TR MOUNTING BASE
- F-15-115T Single 110V Fan w/Thermostat
- 2 = MTDX Mounting Tray’s
- DOOR RODS
More Info

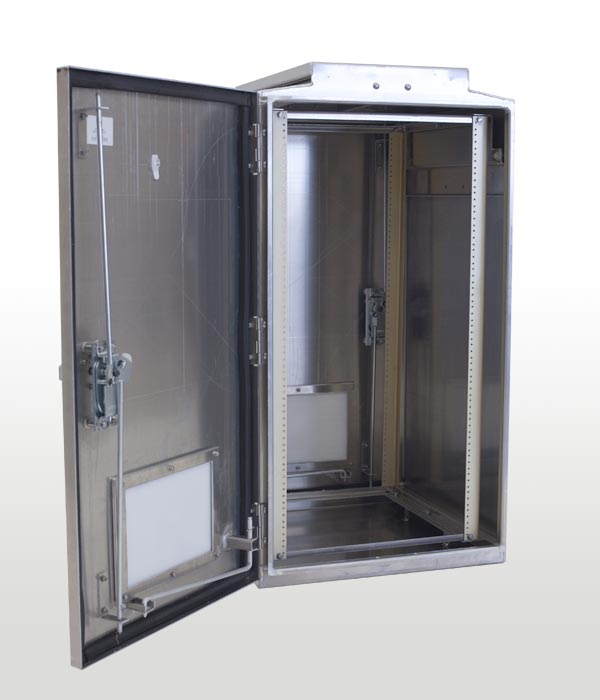

Traffic Enclosures TR-346XL
TR-346XL
- 49″H X 26.75″D X 24.5″W - Outside
- 45″ H X 26.25″ D X 24 ” W - Inside
- Traffic Control Design
- Removable 19″ Cage
- Pocket Door Pouch
- Single Fan Kit w/ Thermostat
- Door Rod
- 3 Point Pad Locking Handle
More Info
Outdoor Build Assemblies

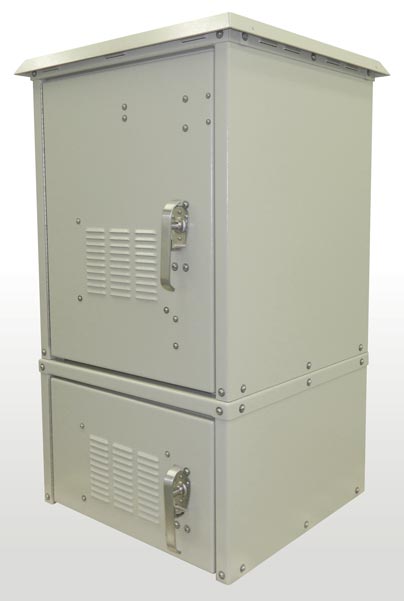

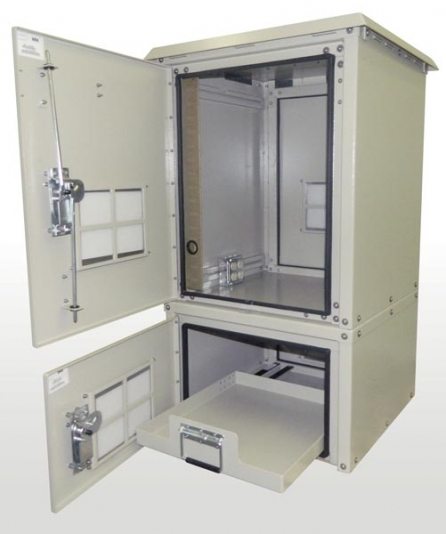

OOD-30DXC-B1 46″H x 25″D / Outdoor Enclosure
OOD-30DX-B1
OOD-30DX-B2*
- OD-30DX (Top Enclosure)
- 30″H X 25″W X 25″D (Adjustable 19″ or 23″ Racking)
- B1 = 1 BOD-DX (Battery Box) (Bottom Enclosure)
- B2 = 2 BOD-DX (Battery Boxes) (Bottom Enclosure)
- Outdoor Battery Box 16″H X 25″W X 25″D (Mounting Tray 2″H X 18.75″W X 20″D)
- Populated 4 Square Outlet
- *Painted Cream
More Info

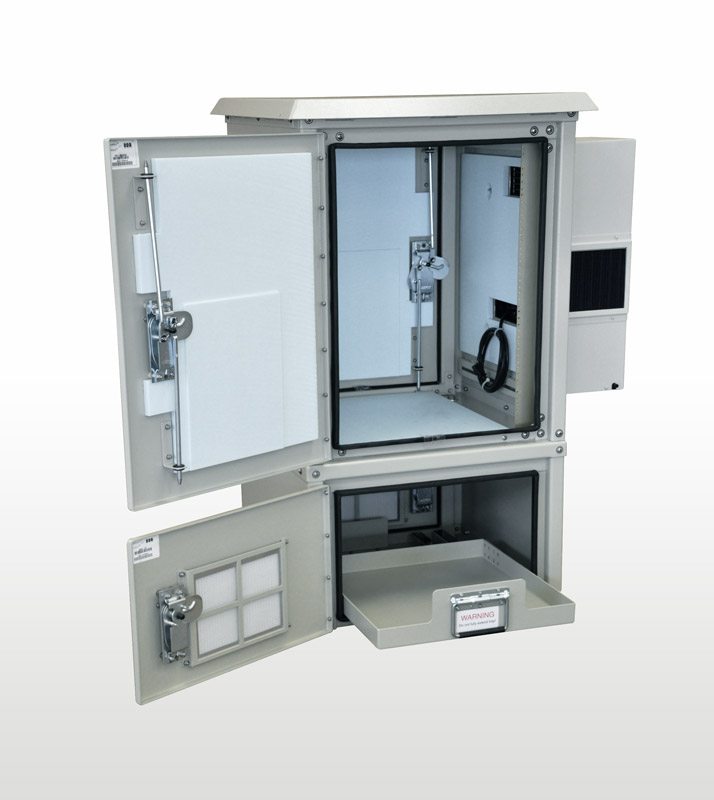

OOD-30DXC-B1AC1 46″H x 25″D / Outdoor Enclosure
OOD-30DXC-B1AC1
OOD-30DXC-B1AC2*
- OD-30DXC (Top Enclosure)
- 30″H X 25″W X 25″D (19″ or 23″ Racking)
- BOD-DX (Battery Box) (Bottom Enclosure)
- Outdoor Battery Box 16″H X 25″W X 25″D
- (Mounting Tray 2″H X 18.75″W X 20″D
- Painted Cream
- 2400 BTU Air conditioner 110 Volts w/ (External Heat option)
- * AC2 Brings on 220 V Air Conditioner
More Info
Indoor/Outdoor Cabinet IOD-46DXC 46″H x 25″W x 30″D
IOD-46DXC
- 46″H X 25 3/4″W X 30 1/2″D
- 2 Sets of 19″ Racking Rails
- Lift Off Removeble Doors
- Rear Access Panel Above Rear Door
- Nema 3R, 4, 4X
- *Painted Cream
More Info
OOD-39DXC-D1 / Outdoor Enclosure
OOD-39DXC-D1
- 39″H X 27″W X 25 “D (19″ and 23″ Racking)
- Painted Cream
- 1 Set of 23″ Rack Rails (w/RU Markers)
- Door Windlocks
- 8 “J” Bracket Cable Hangers
- LC-60: 60 AMP Main Load Center w/2 Populated GFI Outlets (IN 1 4 Square) Each on 20 Amp Breaker
- ZZ-FM-3F: 3′ Fiber Management Racking Kit
- ZZ-GRNDBR-36: 36″ Ground Bar, R-STRUT™ Mounted
- Z-BUFU: 400 CFM Vent Pack for 120 Volt AC & Backup 48 Volt DC w/Time Delay, Painted Cream
- AC-4000I-X03: 4000 BTU Programble Airconditioner, Painted Cream, W/ External Alarm, Output Cable
- 1/2″ R3.3 Insulation
More Info
54″H X 25″D LTE/4G Outdoor Enclosure w/AC 110 Volts & Side Box
OOD-54DX-GP-41
- 54″H X 25″W X 25″D(19″ Racking)
- 4000 BTU 110 Volts (-41=110 Volts) w/400 Watts Heat

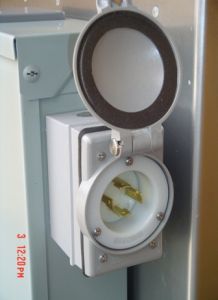

- Ext. Generator Plug
- Door Alarm Switches
- Fluorescent Light
- Spool-Up Side Box
- Ground Bar
- R3.3 Insulation
More Info
54″H X 25″D LTE/4G Outdoor Enclosure w/220 Volt AC & Side Box
OOD-54DX-GP-42
- 54″H X 25″W X 25″D (19″ Racking)
- 4000 BTU 220 Volts (-42=220 Volts) W/ 400 WATTS HEAT
- 100 AMP Main w/ Electrical w/ Twist Lock
- Ext. Generator Plug
- Door Alarm Swith’s
- Fluorescent Light
- Spool-Up Side Box
- Ground Bar
- R3.3 Insulation
More Info

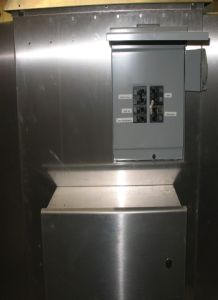

62″H X 34″D 4G/LTEE Wimax Outdoor Enclosure (-61=110 Volts)
OOD-62DD-GP-61
- 62″H X 25″W X 34″D
- Front and Rear Doors
- 3 Point Pad Locking Sytem
- Alumashield Desighn
- (19″ or 23″ Racking)
- 2 1/2 Sets of 19″ Rails
- 100 AMP Main Load Center w/Generator Plug & Manual
- Transfer Switch w/Spool-Up Box for Fiber for Cabling
- 6000 BTU Air Conditioner 110 Volts (-61=110 Volts)
More Info
62″H X 34″D 4G/LTEE Wimax Outdoor Enclosure (-62=220 Volts)
OOD-62DD-GP-62
- 62″H X 25″W X 34″D (19″ or 23″ Racking)
- Unpainted
- Front and Rear Doors
- 3 Point Pad Locking Handles
- 2 1/2 Sets OF 19″ Rails
- 100 AMP Main Load Center w/Generator Plug
- Spool-Up Box 26 x 22 x 10
- 6000 BTU Air Conditioner 220 Volts (-62=220 Volts)
More Info
Climate Control • Power Distribution • Enclosure Construction
DDB Unlimited is an OEM NEMA Outdoor Cabinet Enclosure Manufacturer. We provide a large variety of standard enclosure from 16"-90"H and 25"-42"D. Equipped with adjustable and reversible EIA 19"/23" racking Rails, Front and Rear Doors with 3 Point Pad Locking Handles, NEMA 4, 4X. Air Conditioners ,Heaters, Fans , Batteries and Power options are available. Very Large Inventory and Fast Lead Times.
Configuration • Customization • Accessories • Customer Service
