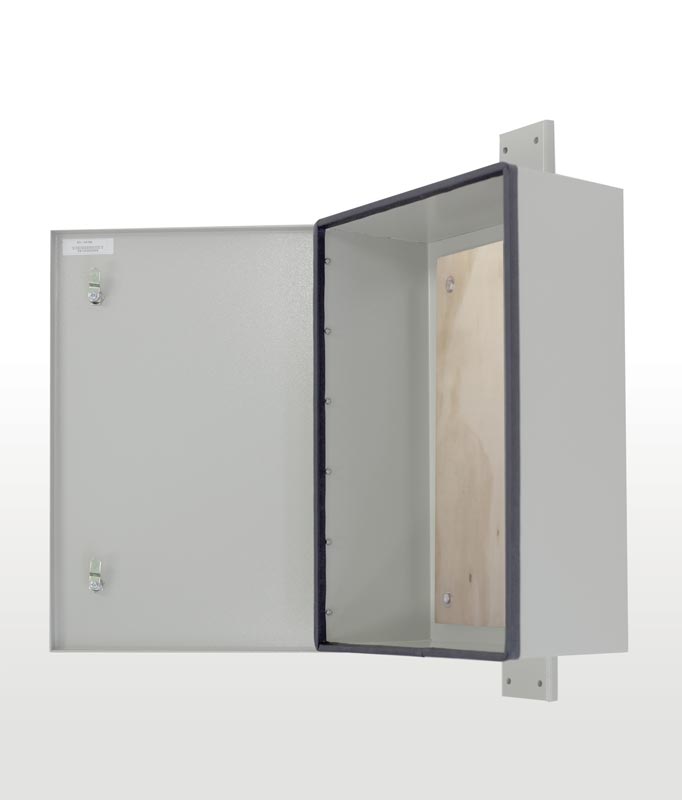

SBPLY-24168 24″H X 16″W X 8″D / Small Outdoor

SBPLY-24168

  • 24″H X 16″W X 8″D
  • Removable plywood back plate
  • 2 Key locks
  • Painted cream
SBPLY-24168 Specs Sheet (PDF)
Download Specification Sheet (PDF)
spacer

(CLICK ON TABS BELOW FOR MORE INFO)

Specifications
Weight
25 lbs.
Doors
Secured with a 2 quarter turns with key Sealed with 13/16″ aluminum filled gaskets
Material
.125” Alumiflex® (Our own aluminum recipe) RF properties: Non-ferrous
Vents
None: Air tight, utilizing a solid construction Ventilation to be provided by customer if desired Using our Alumiflex® material, vents & access

Racking Specifications
Standard
The width on most desktop repeaters are small enough to where they will sit down inside this unit.

Ratings
NEMA Class Types Available
Class 250 Type 4 or 4X
Paint Tested
1000 Hour salt spray 1000 Hour immersion

Warranty
Period
15 Years – Unconditional

Features
Security
2 Quarter turns with key locks
Constructed
Out of .125” Alumiflex® Continuously welded on all seams
NEMA
Weatherproof aluminum filled gasket seals top lid
Finish
Textured polyester (for extreme heat) powder baked on, EURO paint
Plate
Removable Aluminum or 1/2″ Plywood Plate

Accessory Options
N/A

Climate Control Options
Air Conditioners
Heater Options
AC & DC Fan Kits

Shipping Info
Standard Shipped via DHL
