« PREV: 50″H x 25″W x 34″D (52 RU) Outdoor Enclosure
NEXT: 62″H x 25″W x 25″D (33 RU) Outdoor Enclosure »

50″H x 25″W x 42″D (52 RU) Outdoor Enclosure

The OD series outdoor enclosure is the ultimate choice for your outdoor racking requirements. Being made of our own Alumiflex®, you’ll find it noticeably lighter than steel, yet strong enough to rack even the heaviest equipment. Being designed to accommodate the weather protection of your choice, the OD series enclosures are available in NEMA 3R, 4, or 4X configurations. The additional Alumishield® (sun roof), provides superior solar protection with it’s large overhang roof design. Our own versatile strut system allows you to position the racking rails at any depth desired within the enclosure. You can rest assured your equipment is safe and secure as you pad lock the front and rear door handles, knowing they hold the three points locking system securely intact. The OD series enclosures are available in various heights and depths, and they are available in dual and triple bay versions as well. Our professional Sales staff and CAD-Engineering team are able to assist you with a state of the art design, a competitive price, and a guaranteed delivery.

OD-50DDX

Available in Flat Aluminum

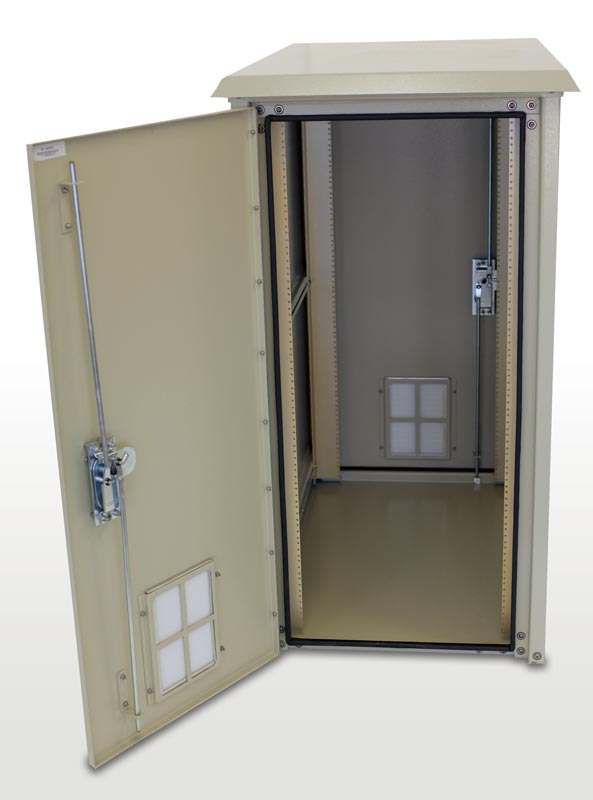

OD-50DDXC

  • 50″H X 25″W X 42″D
  • Front and Rear Doors
  • 3 Point Padlocking Handles
  • 2 Sets of Adjustable 19″ or 23″ Racking Rails
  • Alumishield® Design
  • * (C) Painted Cream
OD-50DDXC Specs Sheet (PDF)
Newly Modified Enclosure Spec Sheet (PDF)
Wind Load Study (PDF)
DDB Fan Kit Installation Instructions (PDF)
spacer
(CLICK ON TABS BELOW FOR MORE INFO)

Specifications – OD-50DDX (C) – 50″H X 25″W X 42″D (52 RU) Outdoor Enclosure
Weight
178 lbs. assembled 218 lbs. Shipping weight
Doors
Two – secured by three point locking system Locks via customer supplied padlocks Sealed with 13/16″ aluminum filled gaskets
Material
.125” Alumiflex® Finish: Flat aluminum RF properties: Non-ferrous
Vents
Thirty bottom louvers per door Twelve top louvers – In top cover-under Alumishield® One removable filter panel per door Twelve fixed filter pads in top cover
Handles
Stainless steel, padlocking
Exterior Screws
Stainless steel with NEMA washers & nylon locking nuts

Racking Specifications
Rails
Two Set Standard (For additional rails see accessories) Alodine coated Holes tapped to 10 x 32 threads Each rail supported by three R-STRUTS™ .125″ Alumiflex®
Spacing
19″ EIA Standard
Positioning
All rails fully adjustable from front to rear
Useable Height
Useable Racking Height Has Been Revised to Only Fit in the Opening of the Door Jam. Which is Cabinet Height Minus 3.75”
Maximum: 745 13/16″
Total # of Rack Units: 52 26 RU’s per Rail Set
Useable Depth
Maximum: 38 1/2 ” Minimum: 36 3/4″ (See below)

Door Opening Clearance
Height
45 13/16″
Width
19 1/2″

Exterior Cabinet Dimensions
Main Body
Width: 25 1/2″ Height: 50″ Depth: 42″
Alumishield®
Width: 28 1/4″ Hang down height: 1 3/4″ Depth: 44 1/2″
Handles
Protrude 1 7/8″
Total Space Occupied
Width: 26″ Height: 50 1/2″ Depth: 46″

Inside Clearance – Less Rails
Width
23 5/8″
Height
50″
Depth
See racking specs – useable depth chart above

Ratings
NEMA Class Types Available
NEMA 3R (Vented), NEMA 4 (closed loop-a/c) , NEMA 4X
Paint Tested
1000 Hour salt spray (Textured) 1000 Hour immersion

Warranty
Period
15 Years – Unconditional

Features
Alumishield®
Top cover, shades cabinet from the sun
Handles
Padlocking Stainless steel – NEMA
Rails
Fully adjustable & Alodine coated
Doors
Front and rear secured with three point locks and padlocking handles
Vents
Front & rear, top & bottom, filters supplied

Accessory Options
F-25-115T:
Dual 110v Fan Kit w/ Thermostat 220 CFM
R-2-50:
Two extra 50″ rails and mounting hardware
MTDDX:
Mounting tray
CA-4:
Caster kit (4) & mounting hardware
SCR-432:
Rail Screws (4) 10×32

Climate Control Options
Air Conditioners
Heater Options
AC & DC Fan Kits

Shipping Info
Standard The OD-50DDX is shipped fully assembled, but can easily be knocked down and re-assembled at your site, if desired.
