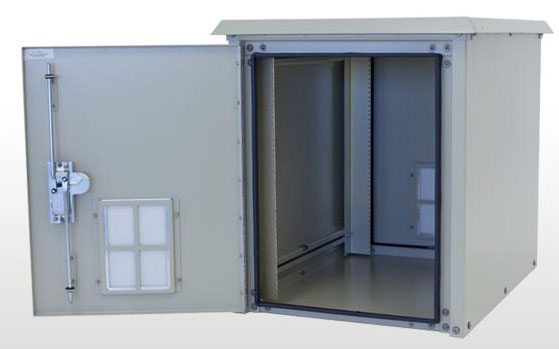

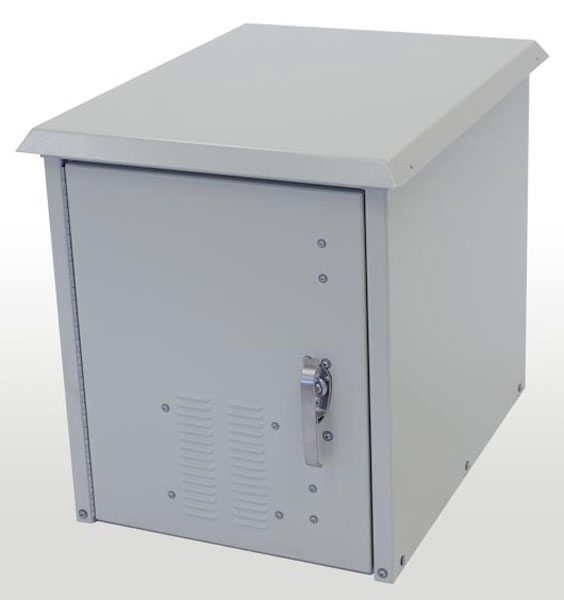

30″H x 25″W x 34″D (15 RU*) Outdoor Enclosure

The OD series outdoor enclosure is the ultimate choice for your outdoor racking requirements. Being made of our own Alumiflex®, you’ll find it noticeably lighter than steel, yet strong enough to rack even the heaviest equipment. Being designed to accommodate the weather protection of your choice, the OD series enclosures are available in NEMA 3R, 4, or 4X configurations. The additional Alumishield® (sun roof), provides superior solar protection with it’s large overhang roof design. Our own versatile strut system allows you to position the racking rails at any depth desired within the enclosure. You can rest assured your equipment is safe and secure as you pad lock the front and rear door handles, knowing they hold the three points locking system securely intact. The OD series enclosures are available in various heights and depths, and they are available in dual and triple bay versions as well. Our professional Sales staff and CAD-Engineering team are able to assist you with a state of the art design, a competitive price, and a guaranteed delivery.



  • 30″H x 25″W x 34″D
  • 2 Sets of Adjustable 19” or 23” Racking Rails w/RU Markings and Pass-through Holes
  • Powder Baked on Textured Cream Paint
  • Front and Rear Doors
  • New Zinc Die Powder-coated Black EMKA Three Point Padlocking Handles
  • Heavy Duty Alumishield® Design

* Front and Rear sets of rails allow some equipment to rack both directions providing up to 30 RU

ETL CertifiedPriceMatch

Specifications – OD-30DD (C) – 30″H X 25″W X 34″D (30 RU) Outdoor Enclosure

105 lbs. Assembled 155 lbs. Shipping Weight
Two – secured by three point locking system Locks via customer supplied padlocks Sealed with 13/16″ aluminum filled gaskets
.125″ Alumiflex® Finish: Flat aluminum RF properties: Non-ferrous
Thirty bottom louvers per door Twelve top louvers – In top cover-under Alumishield® One removable filter panel per door Twelve fixed filter pads in top cover
Zinc Die Powder-coated Black EMKA Three Point Padlocking Handles
Exterior Screws
Stainless steel with NEMA washers & nylon locking nuts

Racking Specifications

2 sets of 19″ rails standard (For additional rails see accessories) Alodine coated Holes tapped to 10 x 32 threads Each rail supported by two R-STRUTS™ .125″ Material (Alumiflex®)
Rail Pass-Throughs
Each rail has 2 pass-through holes with grommets. Holes are 1.75″ diameter
19″ EIA Standard
All rails fully adjustable from front to rear
Useable Height
Useable Racking Height Has Been Revised to Only Fit in the Opening of the Door Jam. Which is Cabinet Height Minus 3.75”
Maximum: 26 13/16″
Total # of Rack Units: 60 15 RU’s per Rail Set
Useable Depth
Maximum: 30 1/2 ” Minimum: 28 3/4″ (See below)
*Section Starting & Ending Points Vertical Height Per section Effective Depth For Each Section
Top 26.75″ – 30.00″ 3.25″ 30.50″
26.57″ – 26.75″ .18″ 29.50″
21.00″ – 26.57″ 5.57″ 30.50″
Center 9.00″ – 21.00″ 12.00″ 28.75″
3.43″ – 9.00″ 5.57″ 30.50″
3.25″ – 3.43″ .18″ 29.50″
Bottom 0.00″ – 3.25″ 3.25″ 30.50″
*Section measurements start from the bottom of the cabinet (0.00″) & run vertically upward towards the top of the cabinet (30.00″)

Door Opening Clearance

25 13/16″
19 1/2″

Exterior Cabinet Dimensions

Main Body
Width: 25 1/2″ Height: 30″ Depth: 34″
Width: 28 1/4″ Hang down height: 1 3/4″ Depth: 36 1/2″
Protrude 1 7/8″
Total Space Occupied
Width: 26″ Height: 30 1/2″ Depth: 38″

Inside Clearance – Less Rails

23 5/8″
See racking specs – useable depth chart above


NEMA Class Types Available
NEMA 3R (Vented), NEMA 4 (closed loop-a/c) , NEMA 4X
Paint Tested
1000 Hour salt spray (Textured) 1000 Hour immersion


15 Years – Unconditional


Top cover, shades cabinet from the sun
Zinc Die Powder-coated Black EMKA Three Point Heavy Duty 1/4 Turn Padlocking Handles, NEMA 4 Rated
2 Sets of Fully Adjustable Alodine Coated 19″ EIA, W/ Pass Thru Holes and Etched RU Markings
Front and rear secured with three point locks and padlocking handles
3 Row / 30 Vents per Door, Vents on Top for Exhaust, All Vents are filters supplied.
Painted Powder Baked-On Textured Cream
New Roof Fan Design
Fluorescent Light Modification
Wind Lock
Door Wind Lock Modification
Cross Alumishield®
Cross Raised Alumishield® (Coming Soon)

Accessory Options

Dual 110v Fan Kit w/ Thermostat 220 CFM
Two extra 30 ” rails and mounting hardware
Mounting tray
Caster kit (4) & mounting hardware
Rail Screws (4) 10×32

Climate Control Options

Air Conditioners
Heater Options
AC & DC Fan Kits

Shipping Info

Standard The OD-30DD is shipped fully assembled, but can easily be knocked down and re-assembled at your site, if desired.
