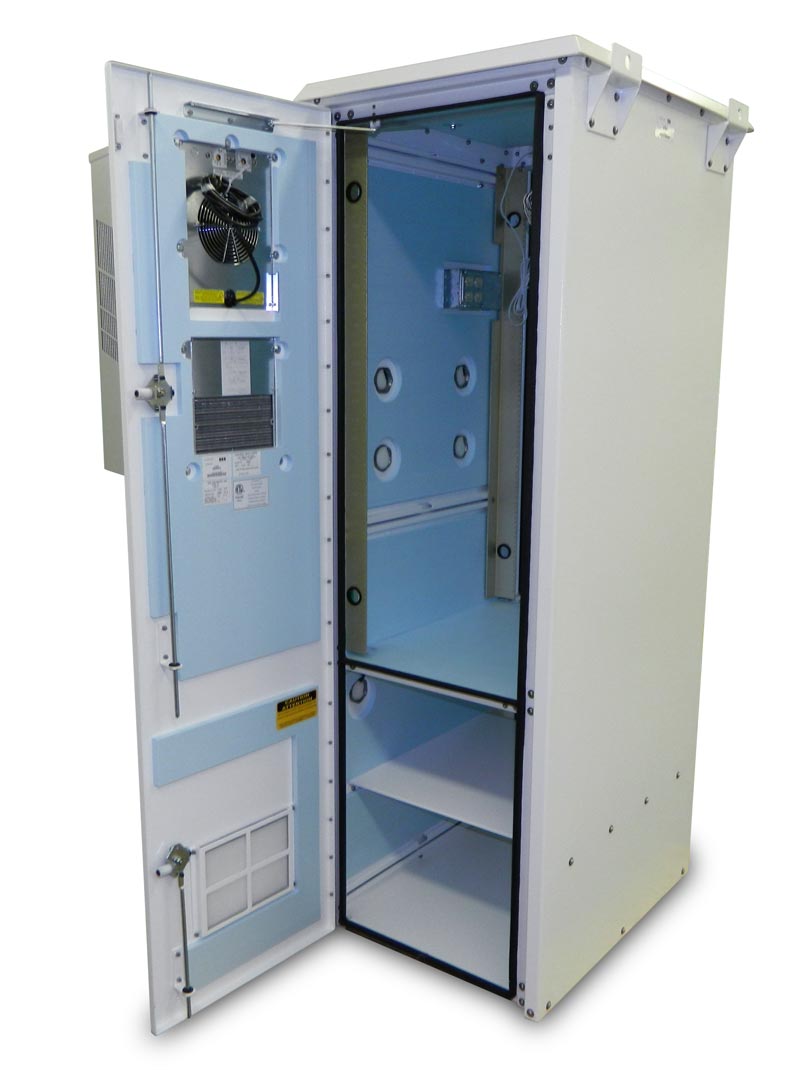

LTEE-ACP-1 (HVAC COOLED)

80″H x 25″W x 34″D (27 RU)

Features & Specifications

The LTEE series enclosure is the ultimate choice for your outdoor equipment racking applications. Being constructed of our Alumiflex® material, you’ll find it noticeably lighter than steel, yet strong enough to rack even the heaviest equipment. When you choose the LTEE series, you are selecting the highest value and most feature rich enclosure offered. With many standard features including HVAC, climate control, electrical load panel and side spool cabinet. The LTEE is ready to make installation and startup as easy as possible. Other standard features such as our versatile “R- strut system”, for adjustable racking and the security of the 3 point locking system are quality features you have come to expect from the DDB name. The LTEE series…. a state of the art, feature rich design at a competitive price with benchmarked leading delivery times.

Features & Specifications

Application Types

Provides a secure, climate controlled environment for any electronic equipment.

  • Telecommunications
  • Wireless/Broadband
  • Fiber Optics
  • Backhaul
  • Base Station
  • Small Cell/DAS
  • Utility – Traffic
  • Trailer-based Communications
  • Wi-Fi
  • Flexible and Scalable

Features

  • Heavy duty out-door construction with Front and Rear Access, Pad Mountable, and 0.125” Aluminum construction
  • 27 Rack Units (RU) – 19” (standard) or 23” (optional) Racking Rails w/ Etched RU Markings and cable pass-through holes
  • SS External Hardware and Polypropylene filters
  • Included Four Square Outlet & Junction Box With 220 Leads
  • Front and Rear set of adjustable 19” racking
  • Interior Light
  • Dual 48V Fan Kit with Adjustable Thermostat
  • 2 Sets of 3 Pole Alarm Switches
  • 100 Amp Dual Panel AC Power Load Center Configuration with 50amp Back-up Generator Plug
  • Lifting Hooks
  • 12” Copper Ground Bar on 14” Risers with Isolators
  • ACP-4000-N28-1(2): 4000 BTU 110V, 1300 Watts of Heat
  • Single Pad Locking Handle for the Bottom Compartment
  • Side Box 45”H x26”W x10”D with Removable Plywood Backplate with a Total of (5) 2” Cable Pass Through Openings

Industry Standards

  • NEMA 3R, 4 or 4X
  • ETL Certified to UL standard 60950-1/CSA 22.2C

Downloads

Base Cabinet Weight and Dimensions

Exterior Cabinet Dimensions
80”H x 25”W x 34”D

Approximate Weight Raw
505 lbs. / Shipping 580 lbs.

Shipping Dimensions
45”H x 60”W x 86”D (ships on pallet)
