54"H x 25"W x 25"D (230V - 29 RU)

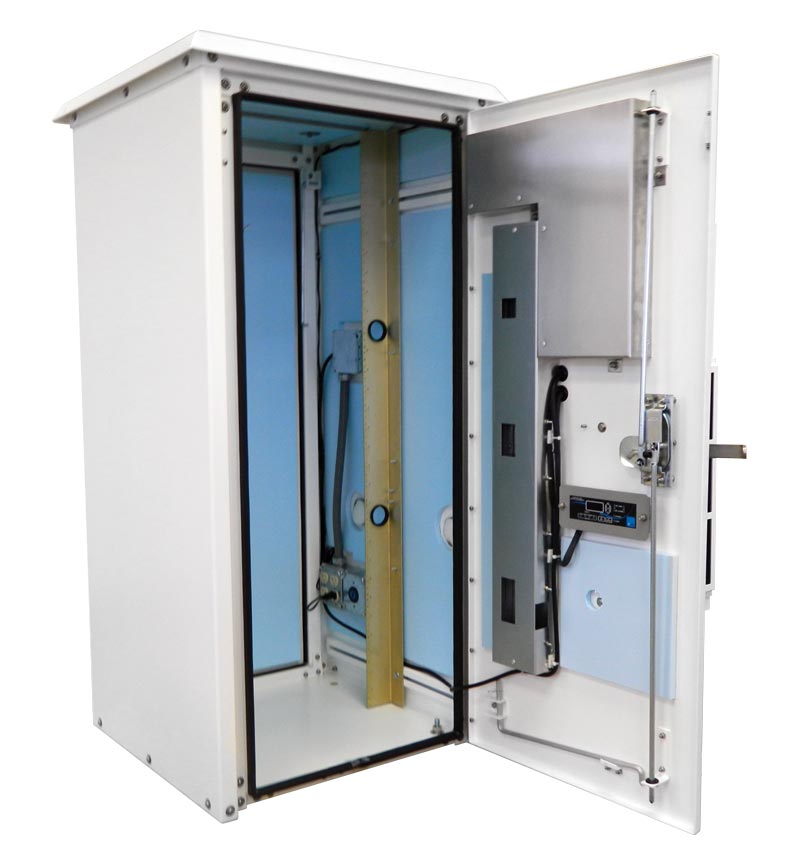

This is one of our Top of the line Cabinet Enclosure that we Manufacture and this Assembly is one of the hottest selling assembly's that we sale. Comes with 19" EIA Center Mount Racking with 29 Racking Units. It has a 5500 BTU Air Condtioner for Cooling with 400 Watts of Heat when needed, R3.3 Insulation glued inside Enclosure, also has a Fluorescent Light Installed on inside top Roof by the Front Door. Has NO/NC Door Alarm Switch's for notifications. A Spool Up Side Box for Fiber or Cable Spooling and a Ground Bar on Insulators inside Spool Up Box. It is ETL Certified.
Features & Specifications
Provides a secure, climate controlled environment for any electronic equipment.
- Fiber Optics
- Base Station
- Small Cell/DAS
- Utility – Traffic
- Trailer-based Communications
- Flexible and Scalable
- NEMA 3R, 4 or 4X
- ETL Certified to UL standard 60950-1/CSA 22.2C
- Top cover, shades cabinet from the sun
- Stainless steel – NEMA
- Fully adjustable & Alodine coated
- Front and rear secured with three point locks and padlocking handles
