WLTEE1-A

67”H x 30”W x 34”D

Features & Specifications

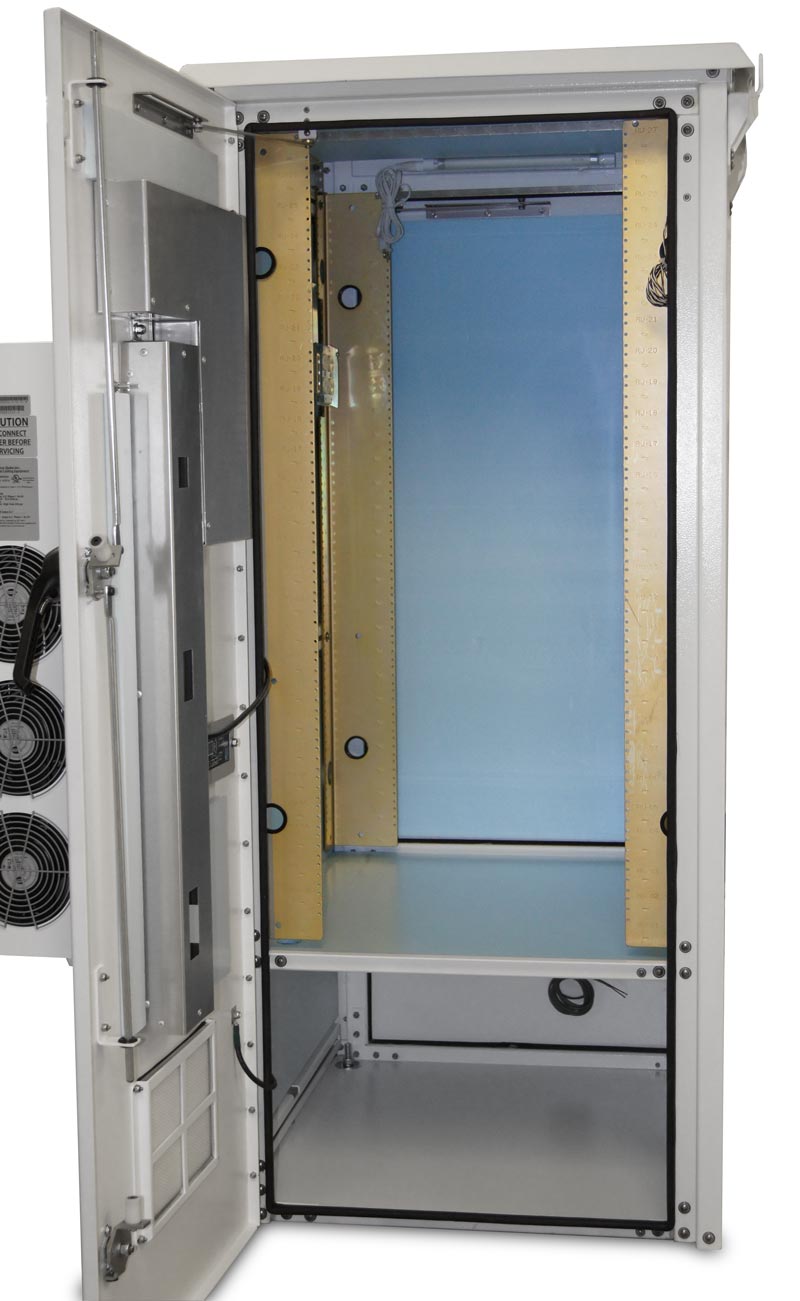

(UPDATED PICTURES COMING SOON) This is one of our top of the line Cabinet Enclosure that we manufacture and this assembly is one of the hottest selling assemblies that we sell. It comes with (2) sets 19″ EIA racking rails with 27RU of available vertical rack space. A 6000 BTU air conditioner for cooling with 400 watts of heat when needed; R3.3 closed cell foam insulation is included also. Above door fluorescent lighting is made available. Has a NO/NC door alarm switches for intrusion notification. A spool-up side box for fiber or cable spooling is included with a copper ground bar on insulators inside the spool-up box. A separate battery compartment below the equipment space is available for all your battery applications and more. It is ETL certified.

Features & Specifications

Application Types

Provides a secure, climate controlled environment for any electronic equipment.

  • Telecommunications
  • Wireless/Broadband
  • Fiber Optics
  • Backhaul
  • Base Station
  • Small Cell/DAS
  • Utility – Traffic
  • Military
  • Trailer-based Communications
  • Wi-Fi
  • Flexible and Scalable

Industry Standards

  • NEMA 3R, 4 or 4X
  • ETL Certified to UL standard 60950-1/CSA 22.2C

Downloads

Base Cabinet Weight and Dimensions

  • Exterior Cabinet Dimensions:
    67”H x 30”W x 34”D
