OD-16DXC

18”H x 28”W x 30”D (7 RU)

Price Match Guarantee

The OD-16DXC, heavy duty out-door front & rear access enclosure. Made of Alumiflex®, a material lighter than steel yet strong enough to rack the heaviest of equipment. DDB Enclosures are designed to withstand the harshest of environmental elements, cold or hot temperatures, wind, rain, ice and other unpredictable weather conditions. For industrial, rural, and residential settings.

Standard features of all OD Series outdoor/indoor enclosures include R-strut system for adjustable racking, 3 point locking systems to secure all boxes, Alumishield® to manage heat loads. Enhanced custom solutions include, HVAC, electrical load panels, bases, trays and cable entry solutions.

American Made, State of The Art Design, and competitive pricing.

Features & Specifications

Application Types

Provides a secure, climate controlled environment for any electronic equipment.

  • Telecommunications
  • Wireless/Broadband
  • Fiber Optics
  • Backhaul
  • Base Station
  • Small Cell/DAS
  • Utility
  • Military
  • Trailer-based Communications
  • Wi-Fi
  • Flexible and Scalable

Industry Standards

  • NEMA 3R, 4 or 4X
  • ETL Certified to UL standard 60950-1/CSA 22.2C

Features

  • Heavy duty out-door construction with Front and Rear Access, Pad Mountable, and 0.125” Aluminum construction
  • 7 Rack Units (RU) – 19″ (standard) RU Rail markings (1) 1.25” Cable Pass Thru hole on each rail
  • SS External Hardware and Polypropylene filters
  • UL Listed version available (contact sales for details)
  • 3 Point Pad Locking System
  • Stainless Steel Door Hinge
  • New Zinc Die Powder-coated Black EMKA Padlocking Handles
  • Alumashield
  • Painted Texture Cream
  • All OD-Series Available in White Powder coat
  • Custom colors available
  • Quick Shipping—7-10 Business days

Downloads

Base Cabinet Weight and Dimensions

Exterior Cabinet Dimensions:
18”H x 28”W x 30”D

Approximate Weight:
Raw: 70 lbs / Shipping:  105 lbs

Shipping Dimensions:
32”W x 42”L Palletized

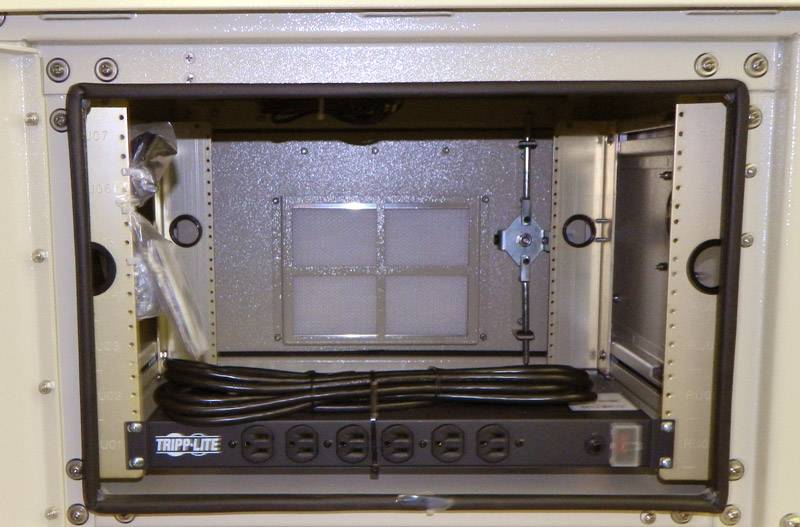

Gallery
