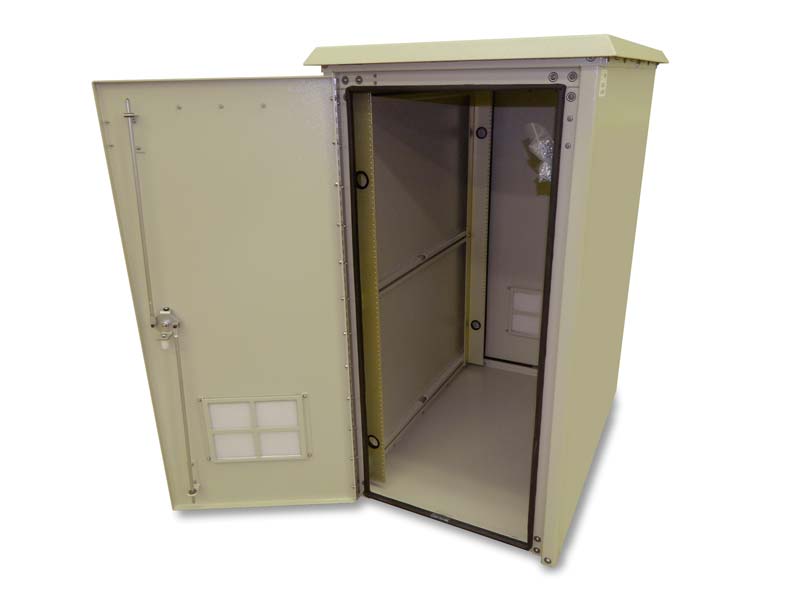

OD-50DDXC

50″H x 25″W x 42″D (26 RU*)

Features & Specifications

The OD series enclosure is the ultimate choice for your out-door racking requirements. Being made of our own rugged Alumi-flex®, you’ll find it noticeably lighter than steel, yet strong enough to rack even the heaviest equipment. When choosing the OD series, you are selecting the highest value in American construction.

The OD series includes standard features you have come to expect; incorporating the versatile strut system, for adjustable racking, the security of the 3 point locking system, and Alumi-shield® solar cap to manage heat loads. Add to this the many accessory items that can be added to enhance functionality including HVAC, electrical load panels, bases, trays and cable entry solutions. DDB can make a truly customized solution.

DDB, a state of the art design, a competitive price, and a guaranteed delivery with benchmark leading lead times. Contact our professional staff to assist you with your design today.

* Front and Rear sets of rails allow some equipment to rack both directions providing up to twice the racking units (RU).

Features & Specifications

Application Types

Provides a secure, climate controlled environment for any electronic equipment.

  • Telecommunications
  • Wireless/Broadband
  • Fiber Optics
  • Backhaul
  • Base Station
  • Small Cell/DAS
  • Utility
  • Military
  • Trailer-based Communications
  • Wi-Fi
  • Flexible and Scalable

Features

  • Heavy duty out-door construction with Front and Rear Access, Pad Mountable, and 0.125” Aluminum construction
  • 26 Rack Units (RU) – 19″ (standard) RU Rail markings (1) 1.25” Cable Pass Thru hole on each rail
  • SS External Hardware and Polypropylene filters
  • UL Listed version available (contact sales for details)
  • 3 Point Pad Locking System
  • Stainless Steel Door Hinge
  • New Zinc Die Powder-coated Black EMKA Padlocking Handles
  • Alumashield
  • Painted Texture Cream
  • All OD-Series Available in White Powder coat
  • Custom colors available
  • Quick Shipping—7-10 Business days

Industry Standards

  • NEMA 3R, 4 or 4X
  • ETL Certified to UL standard 60950-1/CSA 22.2C

Downloads

Base Cabinet Weight and Dimensions

Exterior Cabinet Dimensions:
50”H x 25”W x 42”D

Approximate Weight:
Raw: 175 lbs / Shipping:  215 lbs

Shipping Dimensions:
34”W x 52”L x 56”H
