30″H x 88.5″W x 34″D (45 RU*)

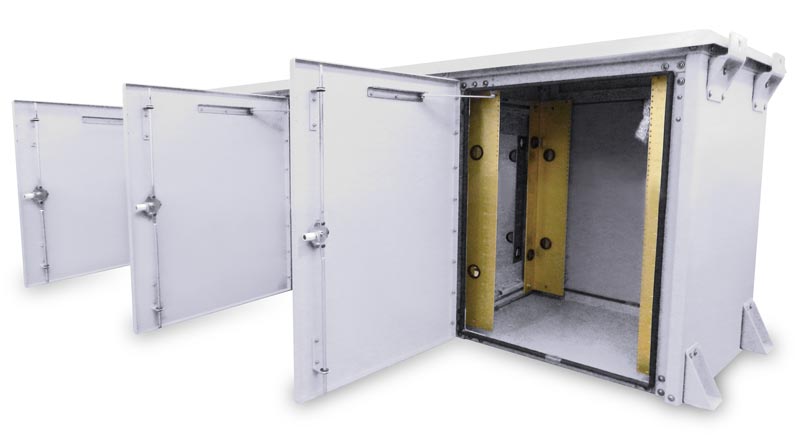

This Triple Bay Design is 30″ High and 88.5″ Wide and 34″ Deep, Painted White. It comes with Six Sets of Standard 19″ or 23″ 15 RU (up to 90 RU’s Total*) Racking Rails w/ RU Markings. Low Profile Racking Hub that will allow you side by side Triple Bay Racking . Nema Outdoor Wireless LTE/4G/Wimax Triple Bay Racking Enclosure.
* Front and Rear sets of rails allow some equipment to rack both directions providing up to twice the racking units (RU).
Features & Specifications
Provides a secure, climate controlled environment for any electronic equipment.
- Fiber Optics
- Base Station
- Small Cell/DAS
- Utility - Traffic
- Trailer-based Communications
- Flexible and Scalable
- NEMA 3R, 4 or 4X
- Top cover, shades cabinet from the sun
- Zinc Die Powder-coated Black EMKA Three Point Heavy Duty 1/4 Turn Padlocking Handles, NEMA 4 Rated
- 6 Sets of Fully Adjustable Alodine Coated 19″ EIA, W/ Pass Thru Holes and Etched RU Markings
- Front and rear secured with three point locks and padlocking handles
- 3 Row / 30 Vents per Door, Vents on Top for Exhaust, All Vents are filters supplied.
- Powder Baked-On Textured Cream
- New Roof Fan Design
- Fluorescent Light Modification
- Door Wind Lock Modification
- Cross Raised Alumishield® (Coming Soon)
- 3OD-30DDW Drawing (PDF)
- 3OD-30DDW Specs Sheet (PDF)
- Wind Load Study (PDF)
- DDB Alumishield® Data (PDF)
- DDB Fan Kit Installation Instructions (PDF)
- Mounting Locations (PDF)
- Seismic & Loading Analysis (PDF)
Base Cabinet Weight and Dimensions
Exterior Cabinet Dimensions:
30″H X 88.5″W X 34″D
