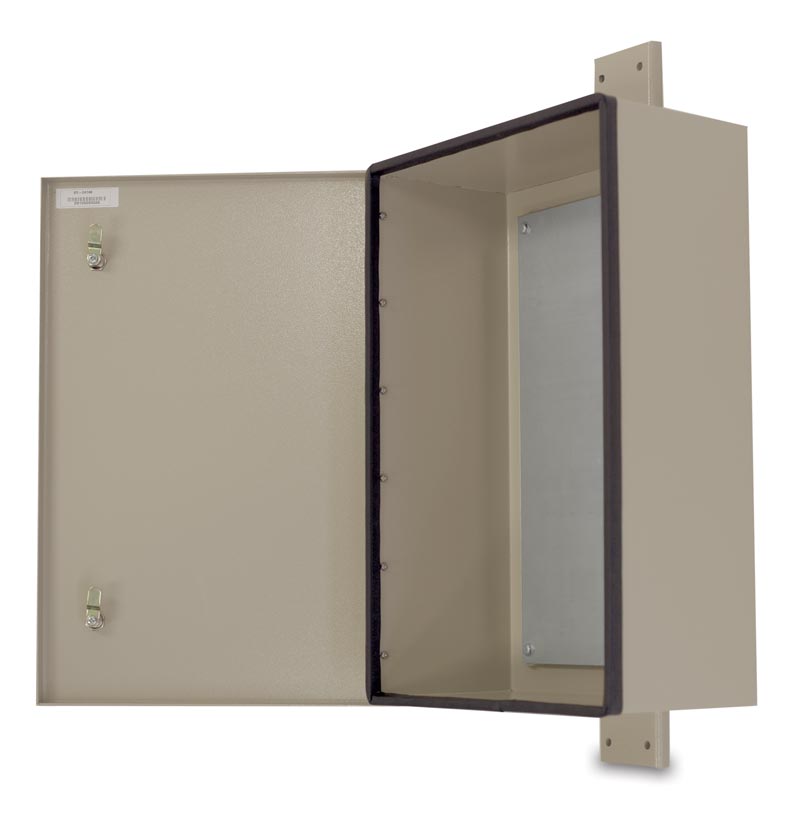

SB-24168

24″H X 16″W X 8″D

Price Match Guarantee

The SB series enclosure is the ultimate choice for your outdoor equipment racking applications when versatility is needed. Being constructed of our Alumiflex® material, you’ll find it noticeably lighter than steel, yet strong enough to rack even the heaviest equipment. When choosing the SB series, ease of installation along with pole and wall mounting options provide endless possibilities for where you can locate. With many standard features including pad lockable system, venting system with reusable filter and top solar shield; you will see the value quickly add up. Add to this a long list of available options including climate controls, electrical and cable entry solutions allows the SB series to provide a flexibility of options that are second to none. All this with industry best lead times and competitive pricing as you have come to expect with DDB. The SB series… a versatile, scalable design to meet a wide array of situations.

Features & Specifications

Application Types

Provides a secure, climate controlled environment for any electronic equipment.

  • Telecommunications
  • Wireless/Broadband
  • DAS/BDA
  • Fiber Optics
  • Backhaul
  • Base Station
  • Small Cell
  • Utility-Traffic
  • Trailer-based Communications
  • Wi-Fi
  • Flexible and Scalable

Industry Standards

  • NEMA 4 or 4X
  • Optional UL Listed

Features

  • Heavy duty outdoor construction with Front Access, Aluminum Pole or Wall Small Box, and 0.125” Aluminum construction.
  • Inside Aluminum Removable Back Plate
  • UL Listed version available (contact sales for details)
  • (2) 1/4 TURN KEY LOCKS
  • Stainless Steel Door Hinge
  • C-CHANNEL POLE MOUNT BRACKET ON THE BACK
  • Painted Texture Cream, No Vents
  • Quick Shipping—7-10 Business days

Downloads

Base Cabinet Weight and Dimensions

Exterior Cabinet Dimensions:
24”H x 16“W x 8”D

Approximate Weight
Raw 25lbs.

Gallery

Call and let our experienced team help you with your build.
